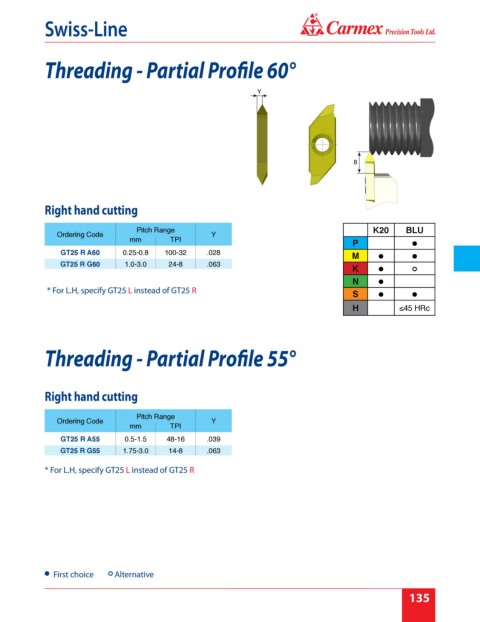

Page 141 - Carmex - Inch Catalog 2018-19 Rev. B
P. 141
®
Swiss-Line
Threading - Partial Profile 60°
Y
8
Right hand cutting
Pitch Range K20 BLU
Ordering Code Y
mm TPI
P
GT25 R A60 0.25-0.8 100-32 .028
M
GT25 R G60 1.0-3.0 24-8 .063
K
N
* For L.H, specify GT25 L instead of GT25 R
S
H ≤45 HRc
Threading - Partial Profile 55°
Right hand cutting
Pitch Range
Ordering Code Y
mm TPI
GT25 R A55 0.5-1.5 48-16 .039
GT25 R G55 1.75-3.0 14-8 .063
* For L.H, specify GT25 L instead of GT25 R
First choice Alternative
135
