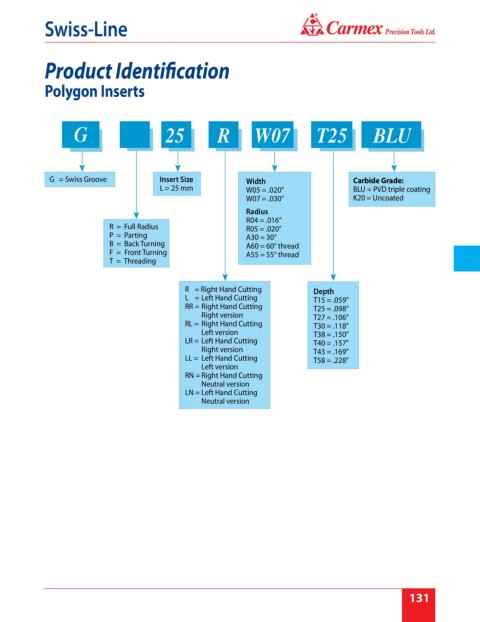

Swiss-Line
Product Identification
Polygon Inserts
G 25 R W07 T25 BLU
G = Swiss Groove Insert Size Width Carbide Grade:
L = 25 mm W05 = .020” BLU = PVD triple coating
W07 = .030” K20 = Uncoated
Radius
R04 = .016“
R = Full Radius R05 = .020”
P = Parting A30 = 30°
B = Back Turning A60 = 60° thread
F = Front Turning A55 = 55° thread
T = Threading
R = Right Hand Cutting Depth
L = Left Hand Cutting T15 = .059”
RR = Right Hand Cutting T25 = .098”
Right version T27 = .106”
RL = Right Hand Cutting T30 = .118”
Left version T38 = .150”
LR = Left Hand Cutting T40 = .157”
Right version T43 = .169”
LL = Left Hand Cutting T58 = .228”
Left version
RN = Right Hand Cutting
Neutral version
LN = Left Hand Cutting
Neutral version
