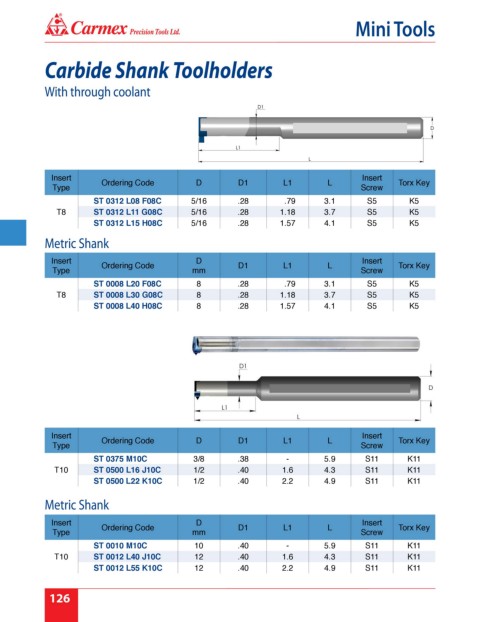

Page 132 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mini Tools

Carbide Shank Toolholders

With through coolant

Insert Insert
Ordering Code D D1 L1 L Torx Key
Type Screw
ST 0312 L08 F08C 5/16 .28 .79 3.1 S5 K5
T8 ST 0312 L11 G08C 5/16 .28 1.18 3.7 S5 K5
ST 0312 L15 H08C 5/16 .28 1.57 4.1 S5 K5
Metric Shank

Insert D Insert
Ordering Code D1 L1 L Torx Key
Type mm Screw
ST 0008 L20 F08C 8 .28 .79 3.1 S5 K5
T8 ST 0008 L30 G08C 8 .28 1.18 3.7 S5 K5
ST 0008 L40 H08C 8 .28 1.57 4.1 S5 K5

Insert Insert
Ordering Code D D1 L1 L Torx Key
Type Screw
ST 0375 M10C 3/8 .38 - 5.9 S11 K11
T10 ST 0500 L16 J10C 1/2 .40 1.6 4.3 S11 K11
ST 0500 L22 K10C 1/2 .40 2.2 4.9 S11 K11

Metric Shank

Insert D Insert
Ordering Code D1 L1 L Torx Key
Type mm Screw
ST 0010 M10C 10 .40 - 5.9 S11 K11
T10 ST 0012 L40 J10C 12 .40 1.6 4.3 S11 K11
ST 0012 L55 K10C 12 .40 2.2 4.9 S11 K11

126
