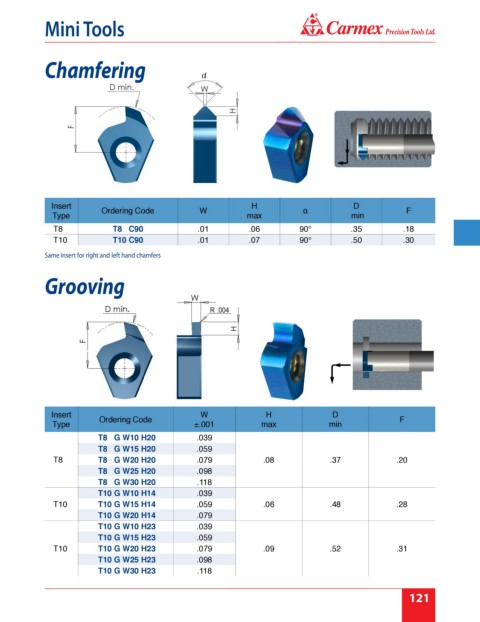

Mini Tools

Chamfering

Insert H D
Ordering Code W α F
Type max min
T8 T8 C90 .01 .06 90° .35 .18
T10 T10 C90 .01 .07 90° .50 .30
Same insert for right and left hand chamfers

Grooving

Insert W H D
Ordering Code F
Type ±.001 max min
T8 G W10 H20 .039
T8 G W15 H20 .059
T8 T8 G W20 H20 .079 .08 .37 .20
T8 G W25 H20 .098
T8 G W30 H20 .118
T10 G W10 H14 .039
T10 T10 G W15 H14 .059 .06 .48 .28
T10 G W20 H14 .079
T10 G W10 H23 .039
T10 G W15 H23 .059
T10 T10 G W20 H23 .079 .09 .52 .31
T10 G W25 H23 .098
T10 G W30 H23 .118
