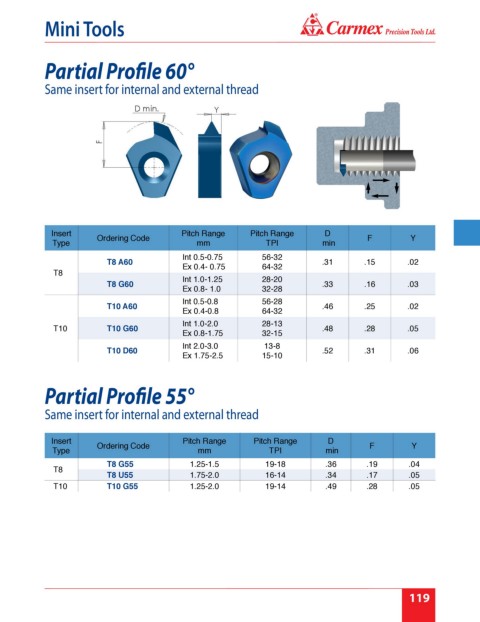

Mini Tools

Partial Profile 60°

Same insert for internal and external thread

Insert Pitch Range Pitch Range D
Ordering Code F Y
Type mm TPI min
Int 0.5-0.75 56-32
T8 A60 .31 .15 .02
Ex 0.4- 0.75 64-32
T8
Int 1.0-1.25 28-20
T8 G60 .33 .16 .03
Ex 0.8- 1.0 32-28
Int 0.5-0.8 56-28
T10 A60 .46 .25 .02
Ex 0.4-0.8 64-32
Int 1.0-2.0 28-13
T10 T10 G60 .48 .28 .05
Ex 0.8-1.75 32-15
Int 2.0-3.0 13-8
T10 D60 .52 .31 .06
Ex 1.75-2.5 15-10

Partial Profile 55°

Same insert for internal and external thread

Insert Pitch Range Pitch Range D
Ordering Code F Y
Type mm TPI min
T8 G55 1.25-1.5 19-18 .36 .19 .04
T8
T8 U55 1.75-2.0 16-14 .34 .17 .05
T10 T10 G55 1.25-2.0 19-14 .49 .28 .05
