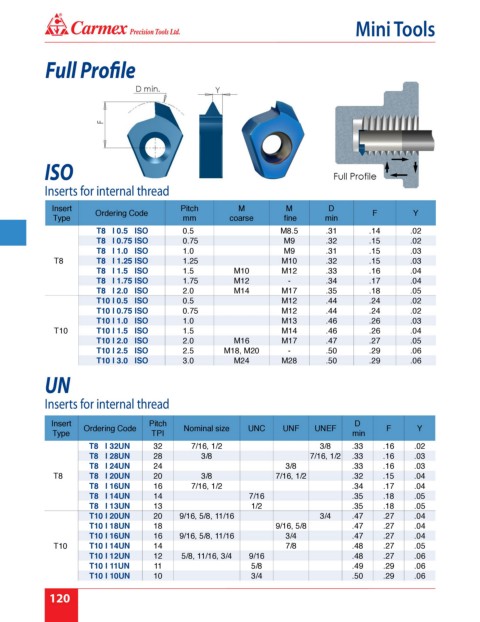

Page 126 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mini Tools

Full Profile

ISO

Inserts for internal thread

Insert Pitch M M D
Ordering Code F Y
Type mm coarse fine min
T8 I 0.5 ISO 0.5 M8.5 .31 .14 .02
T8 I 0.75 ISO 0.75 M9 .32 .15 .02
T8 I 1.0 ISO 1.0 M9 .31 .15 .03
T8 T8 I 1.25 ISO 1.25 M10 .32 .15 .03
T8 I 1.5 ISO 1.5 M10 M12 .33 .16 .04
T8 I 1.75 ISO 1.75 M12 - .34 .17 .04
T8 I 2.0 ISO 2.0 M14 M17 .35 .18 .05
T10 I 0.5 ISO 0.5 M12 .44 .24 .02
T10 I 0.75 ISO 0.75 M12 .44 .24 .02
T10 I 1.0 ISO 1.0 M13 .46 .26 .03
T10 T10 I 1.5 ISO 1.5 M14 .46 .26 .04
T10 I 2.0 ISO 2.0 M16 M17 .47 .27 .05
T10 I 2.5 ISO 2.5 M18, M20 - .50 .29 .06
T10 I 3.0 ISO 3.0 M24 M28 .50 .29 .06
UN

Inserts for internal thread

Insert Pitch D
Ordering Code Nominal size UNC UNF UNEF F Y
Type TPI min
T8 I 32UN 32 7/16, 1/2 3/8 .33 .16 .02
T8 I 28UN 28 3/8 7/16, 1/2 .33 .16 .03
T8 I 24UN 24 3/8 .33 .16 .03
T8 T8 I 20UN 20 3/8 7/16, 1/2 .32 .15 .04
T8 I 16UN 16 7/16, 1/2 .34 .17 .04
T8 I 14UN 14 7/16 .35 .18 .05
T8 I 13UN 13 1/2 .35 .18 .05
T10 I 20UN 20 9/16, 5/8, 11/16 3/4 .47 .27 .04
T10 I 18UN 18 9/16, 5/8 .47 .27 .04
T10 I 16UN 16 9/16, 5/8, 11/16 3/4 .47 .27 .04
T10 T10 I 14UN 14 7/8 .48 .27 .05
T10 I 12UN 12 5/8, 11/16, 3/4 9/16 .48 .27 .06
T10 I 11UN 11 5/8 .49 .29 .06
T10 I 10UN 10 3/4 .50 .29 .06
120
