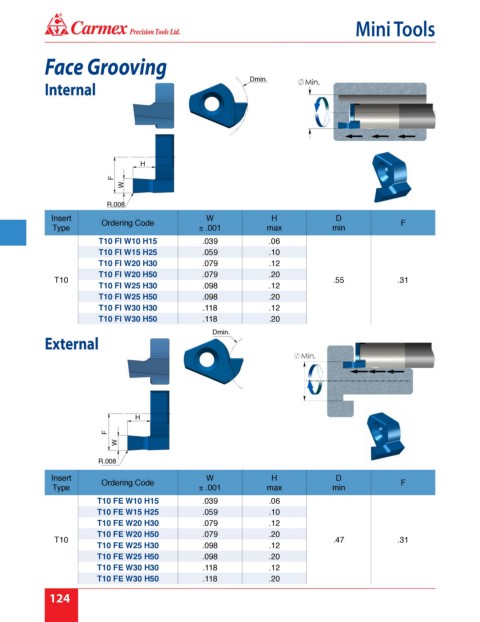

Page 130 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mini Tools

Face Grooving

Internal Dmin.

H
F
W

R.008
Insert W H D
Ordering Code F
Type ± .001 max min
T10 FI W10 H15 .039 .06
T10 FI W15 H25 .059 .10
T10 FI W20 H30 .079 .12
T10 FI W20 H50 .079 .20
T10 .55 .31
T10 FI W25 H30 .098 .12
T10 FI W25 H50 .098 .20
T10 FI W30 H30 .118 .12
T10 FI W30 H50 .118 .20

External Dmin.

H

F
W

R.008

Insert W H D
Ordering Code F
Type ± .001 max min
T10 FE W10 H15 .039 .06
T10 FE W15 H25 .059 .10
T10 FE W20 H30 .079 .12
T10 FE W20 H50 .079 .20
T10 .47 .31
T10 FE W25 H30 .098 .12
T10 FE W25 H50 .098 .20
T10 FE W30 H30 .118 .12
T10 FE W30 H50 .118 .20
124
