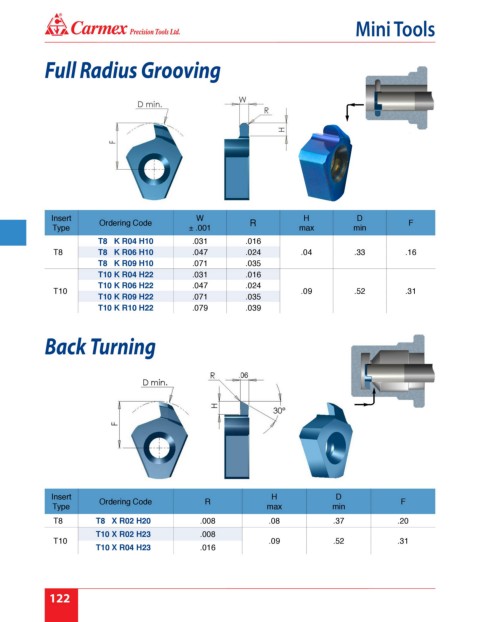

Page 128 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mini Tools

Full Radius Grooving

Insert W H D
Ordering Code R F
Type ± .001 max min
T8 K R04 H10 .031 .016
T8 T8 K R06 H10 .047 .024 .04 .33 .16
T8 K R09 H10 .071 .035
T10 K R04 H22 .031 .016
T10 K R06 H22 .047 .024
T10 .09 .52 .31
T10 K R09 H22 .071 .035
T10 K R10 H22 .079 .039

Back Turning

Insert H D
Ordering Code R F
Type max min
T8 T8 X R02 H20 .008 .08 .37 .20
T10 X R02 H23 .008
T10 .09 .52 .31
T10 X R04 H23 .016

122
