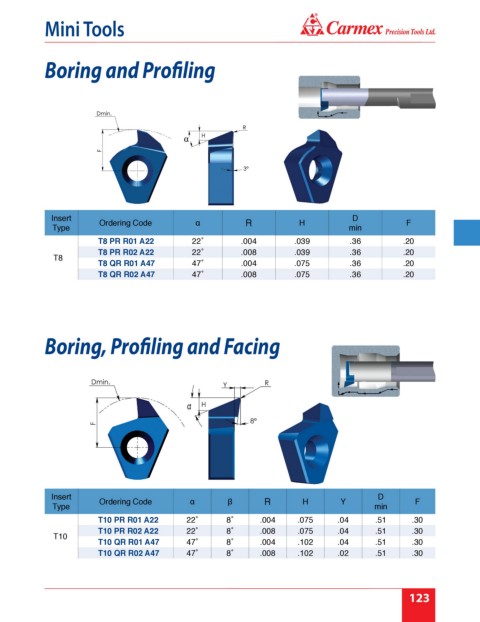

Mini Tools

Boring and Profiling

Insert D
Ordering Code α R H F
Type min
T8 PR R01 A22 22˚ .004 .039 .36 .20
T8 PR R02 A22 22˚ .008 .039 .36 .20
T8
T8 QR R01 A47 47˚ .004 .075 .36 .20
T8 QR R02 A47 47˚ .008 .075 .36 .20

Boring, Profiling and Facing

Insert D
Ordering Code α β R H Y F
Type min
T10 PR R01 A22 22˚ 8˚ .004 .075 .04 .51 .30
T10 PR R02 A22 22˚ 8˚ .008 .075 .04 .51 .30
T10
T10 QR R01 A47 47˚ 8˚ .004 .102 .04 .51 .30
T10 QR R02 A47 47˚ 8˚ .008 .102 .02 .51 .30
