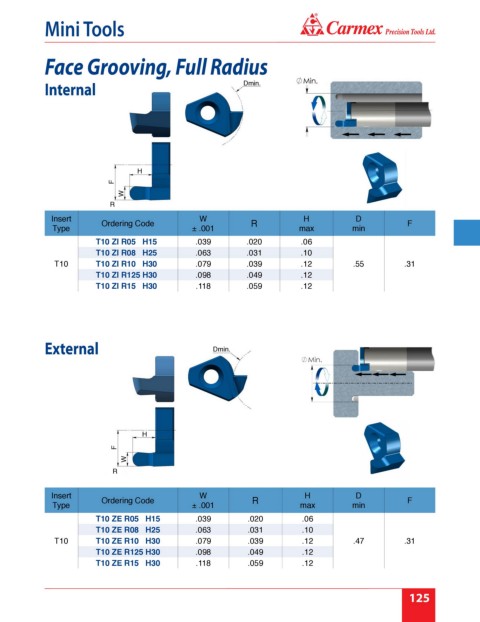

Page 131 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mini Tools

Face Grooving, Full Radius

Internal Dmin.

H
F
W
R
Insert W H D
Ordering Code R F
Type ± .001 max min
T10 ZI R05 H15 .039 .020 .06
T10 ZI R08 H25 .063 .031 .10
T10 T10 ZI R10 H30 .079 .039 .12 .55 .31
T10 ZI R125 H30 .098 .049 .12
T10 ZI R15 H30 .118 .059 .12

External Dmin.

H
F
W
R

Insert W H D
Ordering Code R F
Type ± .001 max min
T10 ZE R05 H15 .039 .020 .06
T10 ZE R08 H25 .063 .031 .10
T10 T10 ZE R10 H30 .079 .039 .12 .47 .31
T10 ZE R125 H30 .098 .049 .12
T10 ZE R15 H30 .118 .059 .12

125
