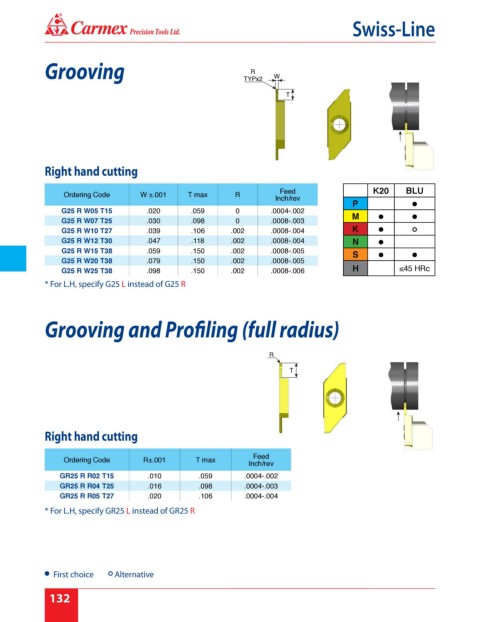

Page 138 - Carmex - Inch Catalog 2018-19 Rev. B

®
Swiss-Line

Grooving TYPx2 W
R

T

Right hand cutting

Feed K20 BLU
Ordering Code W ±.001 T max R
Inch/rev
P
G25 R W05 T15 .020 .059 0 .0004-.002
M
G25 R W07 T25 .030 .098 0 .0008-.003
G25 R W10 T27 .039 .106 .002 .0008-.004 K
G25 R W12 T30 .047 .118 .002 .0008-.004 N
G25 R W15 T38 .059 .150 .002 .0008-.005
S
G25 R W20 T38 .079 .150 .002 .0008-.005
G25 R W25 T38 .098 .150 .002 .0008-.006 H ≤45 HRc
* For L.H, specify G25 L instead of G25 R

Grooving and Profiling (full radius)

R

T

Right hand cutting

Feed
Ordering Code R±.001 T max
Inch/rev
GR25 R R02 T15 .010 .059 .0004-.002
GR25 R R04 T25 .016 .098 .0004-.003
GR25 R R05 T27 .020 .106 .0004-.004
* For L.H, specify GR25 L instead of GR25 R

First choice Alternative
