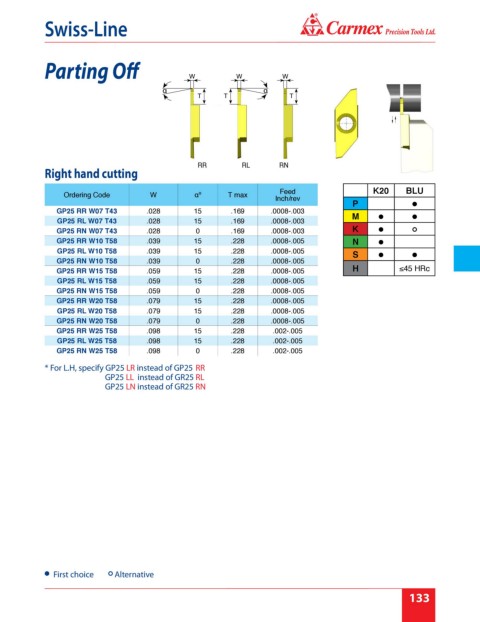

Page 139 - Carmex - Inch Catalog 2018-19 Rev. B

®
Swiss-Line

Parting Off W W W

α α
T T T

Right hand cutting RR RL RN

Feed K20 BLU
Ordering Code W αº T max
Inch/rev
P
GP25 RR W07 T43 .028 15 .169 .0008-.003
M
GP25 RL W07 T43 .028 15 .169 .0008-.003
GP25 RN W07 T43 .028 0 .169 .0008-.003 K
GP25 RR W10 T58 .039 15 .228 .0008-.005 N
GP25 RL W10 T58 .039 15 .228 .0008-.005
S
GP25 RN W10 T58 .039 0 .228 .0008-.005
GP25 RR W15 T58 .059 15 .228 .0008-.005 H ≤45 HRc
GP25 RL W15 T58 .059 15 .228 .0008-.005
GP25 RN W15 T58 .059 0 .228 .0008-.005
GP25 RR W20 T58 .079 15 .228 .0008-.005
GP25 RL W20 T58 .079 15 .228 .0008-.005
GP25 RN W20 T58 .079 0 .228 .0008-.005
GP25 RR W25 T58 .098 15 .228 .002-.005
GP25 RL W25 T58 .098 15 .228 .002-.005
GP25 RN W25 T58 .098 0 .228 .002-.005
* For L.H, specify GP25 LR instead of GP25 RR
GP25 LL instead of GR25 RL
GP25 LN instead of GR25 RN

First choice Alternative
