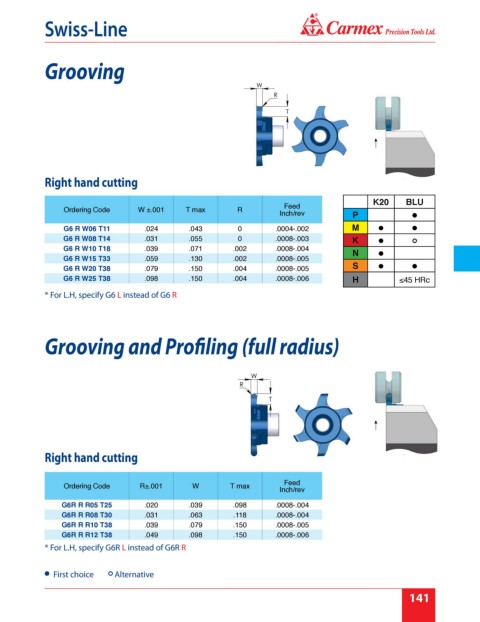

Page 147 - Carmex - Inch Catalog 2018-19 Rev. B
P. 147
®
Swiss-Line
Grooving
Right hand cutting
K20 BLU
Feed
Ordering Code W ±.001 T max R
Inch/rev P
G6 R W06 T11 .024 .043 0 .0004-.002 M
G6 R W08 T14 .031 .055 0 .0008-.003 K
G6 R W10 T18 .039 .071 .002 .0008-.004
N
G6 R W15 T33 .059 .130 .002 .0008-.005
G6 R W20 T38 .079 .150 .004 .0008-.005 S
G6 R W25 T38 .098 .150 .004 .0008-.006 H ≤45 HRc
* For L.H, specify G6 L instead of G6 R
Grooving and Profiling (full radius)
Right hand cutting
Feed
Ordering Code R±.001 W T max
Inch/rev
G6R R R05 T25 .020 .039 .098 .0008-.004
G6R R R08 T30 .031 .063 .118 .0008-.004
G6R R R10 T38 .039 .079 .150 .0008-.005
G6R R R12 T38 .049 .098 .150 .0008-.006
* For L.H, specify G6R L instead of G6R R
First choice Alternative
141
