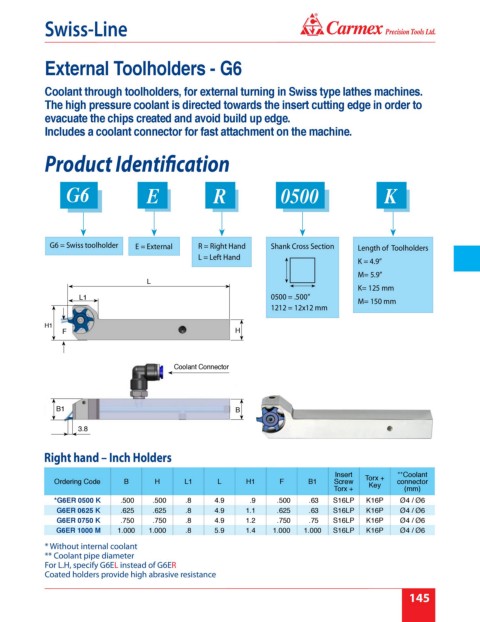

Page 151 - Carmex - Inch Catalog 2018-19 Rev. B

®
Swiss-Line

External Toolholders - G6

Coolant through toolholders, for external turning in Swiss type lathes machines.
The high pressure coolant is directed towards the insert cutting edge in order to
evacuate the chips created and avoid build up edge.
Includes a coolant connector for fast attachment on the machine.

Product Identification

G6 E R 0500 K

G6 = Swiss toolholder E = External R = Right Hand Shank Cross Section Length of Toolholders
L = Left Hand
K = 4.9”
M= 5.9”
L
K= 125 mm
L1 0500 = .500” M= 150 mm
1212 = 12x12 mm

H1
F H

Coolant Connector

B1 B

3.8

Right hand – Inch Holders

Insert Torx + **Coolant
Ordering Code B H L1 L H1 F B1 Screw Key connector
Torx + (mm)
*G6ER 0500 K .500 .500 .8 4.9 .9 .500 .63 S16LP K16P Ø4 / Ø6
G6ER 0625 K .625 .625 .8 4.9 1.1 .625 .63 S16LP K16P Ø4 / Ø6
G6ER 0750 K .750 .750 .8 4.9 1.2 .750 .75 S16LP K16P Ø4 / Ø6
G6ER 1000 M 1.000 1.000 .8 5.9 1.4 1.000 1.000 S16LP K16P Ø4 / Ø6
* Without internal coolant
** Coolant pipe diameter
For L.H, specify G6EL instead of G6ER
Coated holders provide high abrasive resistance
