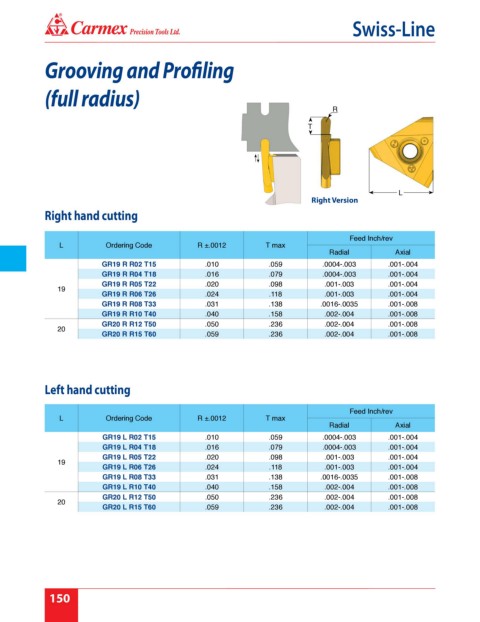

Page 156 - Carmex - Inch Catalog 2018-19 Rev. B

®
Swiss-Line

Grooving and Profiling

(full radius)

R

T

L
Right Version
Right hand cutting

Feed Inch/rev
L Ordering Code R ±.0012 T max
Radial Axial
GR19 R R02 T15 .010 .059 .0004-.003 .001-.004
GR19 R R04 T18 .016 .079 .0004-.003 .001-.004
GR19 R R05 T22 .020 .098 .001-.003 .001-.004
19
GR19 R R06 T26 .024 .118 .001-.003 .001-.004
GR19 R R08 T33 .031 .138 .0016-.0035 .001-.008
GR19 R R10 T40 .040 .158 .002-.004 .001-.008
GR20 R R12 T50 .050 .236 .002-.004 .001-.008
20
GR20 R R15 T60 .059 .236 .002-.004 .001-.008

Left hand cutting

Feed Inch/rev
L Ordering Code R ±.0012 T max
Radial Axial
GR19 L R02 T15 .010 .059 .0004-.003 .001-.004
GR19 L R04 T18 .016 .079 .0004-.003 .001-.004
GR19 L R05 T22 .020 .098 .001-.003 .001-.004
19
GR19 L R06 T26 .024 .118 .001-.003 .001-.004
GR19 L R08 T33 .031 .138 .0016-.0035 .001-.008
GR19 L R10 T40 .040 .158 .002-.004 .001-.008
GR20 L R12 T50 .050 .236 .002-.004 .001-.008
20
GR20 L R15 T60 .059 .236 .002-.004 .001-.008

150
