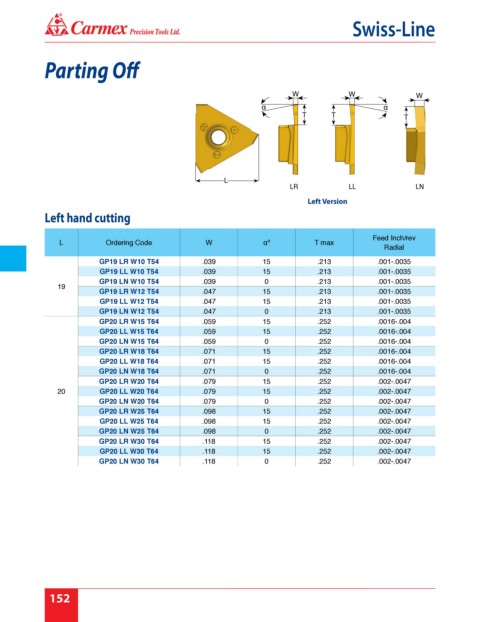

Page 158 - Carmex - Inch Catalog 2018-19 Rev. B

®
Swiss-Line

Parting Off

W W W

α α
T T T

L
LR LL LN
Left Version
Left hand cutting

Feed Inch/rev
L Ordering Code W αº T max
Radial
GP19 LR W10 T54 .039 15 .213 .001-.0035
GP19 LL W10 T54 .039 15 .213 .001-.0035
GP19 LN W10 T54 .039 0 .213 .001-.0035
19
GP19 LR W12 T54 .047 15 .213 .001-.0035
GP19 LL W12 T54 .047 15 .213 .001-.0035
GP19 LN W12 T54 .047 0 .213 .001-.0035
GP20 LR W15 T64 .059 15 .252 .0016-.004
GP20 LL W15 T64 .059 15 .252 .0016-.004
GP20 LN W15 T64 .059 0 .252 .0016-.004
GP20 LR W18 T64 .071 15 .252 .0016-.004
GP20 LL W18 T64 .071 15 .252 .0016-.004
GP20 LN W18 T64 .071 0 .252 .0016-.004
GP20 LR W20 T64 .079 15 .252 .002-.0047
20 GP20 LL W20 T64 .079 15 .252 .002-.0047
GP20 LN W20 T64 .079 0 .252 .002-.0047
GP20 LR W25 T64 .098 15 .252 .002-.0047
GP20 LL W25 T64 .098 15 .252 .002-.0047
GP20 LN W25 T64 .098 0 .252 .002-.0047
GP20 LR W30 T64 .118 15 .252 .002-.0047
GP20 LL W30 T64 .118 15 .252 .002-.0047
GP20 LN W30 T64 .118 0 .252 .002-.0047

152
