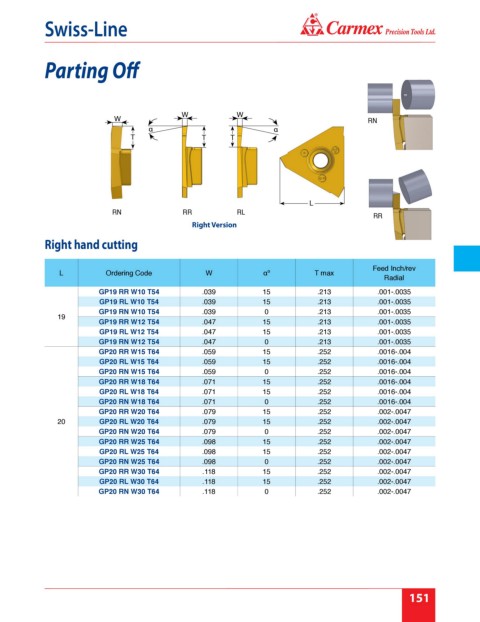

Page 157 - Carmex - Inch Catalog 2018-19 Rev. B

®
Swiss-Line

Parting Off

W W
W RN
α α
T T T

L
RN RR RL
RR
Right Version

Right hand cutting

Feed Inch/rev
L Ordering Code W αº T max
Radial
GP19 RR W10 T54 .039 15 .213 .001-.0035
GP19 RL W10 T54 .039 15 .213 .001-.0035
GP19 RN W10 T54 .039 0 .213 .001-.0035
19
GP19 RR W12 T54 .047 15 .213 .001-.0035
GP19 RL W12 T54 .047 15 .213 .001-.0035
GP19 RN W12 T54 .047 0 .213 .001-.0035
GP20 RR W15 T64 .059 15 .252 .0016-.004
GP20 RL W15 T64 .059 15 .252 .0016-.004
GP20 RN W15 T64 .059 0 .252 .0016-.004
GP20 RR W18 T64 .071 15 .252 .0016-.004
GP20 RL W18 T64 .071 15 .252 .0016-.004
GP20 RN W18 T64 .071 0 .252 .0016-.004
GP20 RR W20 T64 .079 15 .252 .002-.0047
20 GP20 RL W20 T64 .079 15 .252 .002-.0047
GP20 RN W20 T64 .079 0 .252 .002-.0047
GP20 RR W25 T64 .098 15 .252 .002-.0047
GP20 RL W25 T64 .098 15 .252 .002-.0047
GP20 RN W25 T64 .098 0 .252 .002-.0047
GP20 RR W30 T64 .118 15 .252 .002-.0047
GP20 RL W30 T64 .118 15 .252 .002-.0047
GP20 RN W30 T64 .118 0 .252 .002-.0047

151
