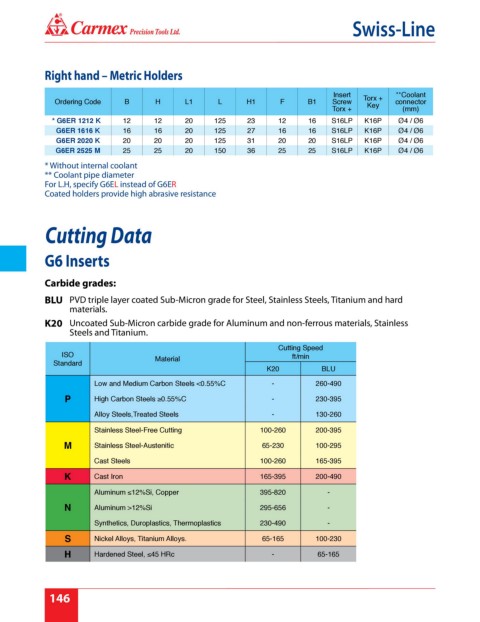

Page 152 - Carmex - Inch Catalog 2018-19 Rev. B

®
Swiss-Line

Right hand – Metric Holders

Insert Torx + **Coolant
Ordering Code B H L1 L H1 F B1 Screw Key connector
Torx + (mm)
* G6ER 1212 K 12 12 20 125 23 12 16 S16LP K16P Ø4 / Ø6
G6ER 1616 K 16 16 20 125 27 16 16 S16LP K16P Ø4 / Ø6
G6ER 2020 K 20 20 20 125 31 20 20 S16LP K16P Ø4 / Ø6
G6ER 2525 M 25 25 20 150 36 25 25 S16LP K16P Ø4 / Ø6
* Without internal coolant
** Coolant pipe diameter
For L.H, specify G6EL instead of G6ER
Coated holders provide high abrasive resistance

Cutting Data

G6 Inserts

Carbide grades:

BLU PVD triple layer coated Sub-Micron grade for Steel, Stainless Steels, Titanium and hard
materials.

K20 Uncoated Sub-Micron carbide grade for Aluminum and non-ferrous materials, Stainless
Steels and Titanium.

Cutting Speed
ISO Material ft/min
Standard
K20 BLU
Low and Medium Carbon Steels <0.55%C - 260-490
P High Carbon Steels ≥0.55%C - 230-395

Alloy Steels,Treated Steels - 130-260
Stainless Steel-Free Cutting 100-260 200-395
M Stainless Steel-Austenitic 65-230 100-295

Cast Steels 100-260 165-395

K Cast Iron 165-395 200-490
Aluminum ≤12%Si, Copper 395-820 -
N Aluminum >12%Si 295-656 -

Synthetics, Duroplastics, Thermoplastics 230-490 -
S Nickel Alloys, Titanium Alloys. 65-165 100-230

H Hardened Steel, ≤45 HRc - 65-165
