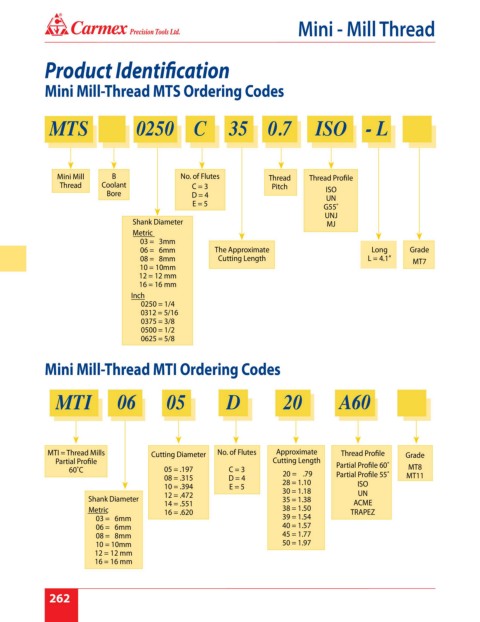

Page 268 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mini - Mill Thread

Product Identification

Mini Mill-Thread MTS Ordering Codes

MTS 0250 C 35 0.7 ISO - L

Mini Mill B No. of Flutes Thread Thread Profile
Thread Coolant C = 3 Pitch ISO
Bore D = 4 UN
E = 5 G55˚
UNJ
Shank Diameter MJ
Metric
03 = 3mm
06 = 6mm The Approximate Long Grade
08 = 8mm Cutting Length L = 4.1” MT7
10 = 10mm
12 = 12 mm
16 = 16 mm
Inch
0250 = 1/4
0312 = 5/16
0375 = 3/8
0500 = 1/2
0625 = 5/8

Mini Mill-Thread MTI Ordering Codes

MTI 06 05 D 20 A60

MTI = Thread Mills Cutting Diameter No. of Flutes Approximate Thread Profile Grade
Partial Profile Cutting Length Partial Profile 60˚
60˚C 05 = .197 C = 3 20 = .79 MT8
08 = .315 D = 4 Partial Profile 55˚ MT11
10 = .394 E = 5 28 = 1.10 ISO
12 = .472 30 = 1.18 UN
Shank Diameter 14 = .551 35 = 1.38 ACME
Metric 16 = .620 38 = 1.50 TRAPEZ
03 = 6mm 39 = 1.54
06 = 6mm 40 = 1.57
08 = 8mm 45 = 1.77
10 = 10mm 50 = 1.97
12 = 12 mm
16 = 16 mm

8 262
