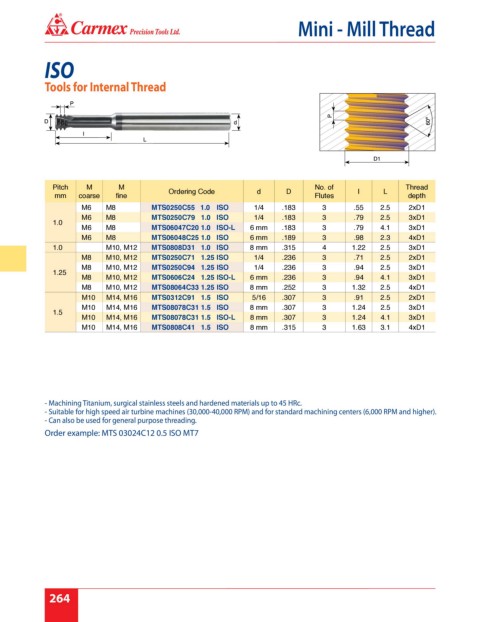

Mini - Mill Thread

ISO

Tools for Internal Thread

Pitch M M Ordering Code d D No. of I L Thread
mm coarse fine Flutes depth
M6 M8 MTS0250C55 1.0 ISO 1/4 .183 3 .55 2.5 2xD1
M6 M8 MTS0250C79 1.0 ISO 1/4 .183 3 .79 2.5 3xD1
1.0
M6 M8 MTS06047C20 1.0 ISO-L 6 mm .183 3 .79 4.1 3xD1
M6 M8 MTS06048C25 1.0 ISO 6 mm .189 3 .98 2.3 4xD1
1.0 M10, M12 MTS0808D31 1.0 ISO 8 mm .315 4 1.22 2.5 3xD1
M8 M10, M12 MTS0250C71 1.25 ISO 1/4 .236 3 .71 2.5 2xD1
M8 M10, M12 MTS0250C94 1.25 ISO 1/4 .236 3 .94 2.5 3xD1
1.25
M8 M10, M12 MTS0606C24 1.25 ISO-L 6 mm .236 3 .94 4.1 3xD1
M8 M10, M12 MTS08064C33 1.25 ISO 8 mm .252 3 1.32 2.5 4xD1
M10 M14, M16 MTS0312C91 1.5 ISO 5/16 .307 3 .91 2.5 2xD1
M10 M14, M16 MTS08078C31 1.5 ISO 8 mm .307 3 1.24 2.5 3xD1
1.5
M10 M14, M16 MTS08078C31 1.5 ISO-L 8 mm .307 3 1.24 4.1 3xD1
M10 M14, M16 MTS0808C41 1.5 ISO 8 mm .315 3 1.63 3.1 4xD1

- Machining Titanium, surgical stainless steels and hardened materials up to 45 HRc.
- Suitable for high speed air turbine machines (30,000-40,000 RPM) and for standard machining centers (6,000 RPM and higher).
- Can also be used for general purpose threading.
Order example: MTS 03024C12 0.5 ISO MT7
