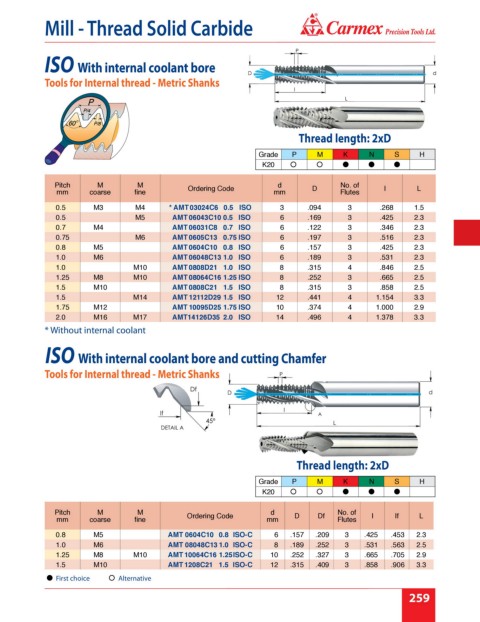

Page 265 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mill - Thread Solid Carbide

ISO With internal coolant bore

Tools for Internal thread - Metric Shanks

Thread length: 2xD

Grade P M K N S H
K20

Pitch M M Ordering Code d D No. of I L
mm coarse fine mm Flutes

0.5 M3 M4 * AMT 03024C6 0.5 ISO 3 .094 3 .268 1.5
0.5 M5 AMT 06043C10 0.5 ISO 6 .169 3 .425 2.3
0.7 M4 AMT 06031C8 0.7 ISO 6 .122 3 .346 2.3
0.75 M6 AMT 0605C13 0.75 ISO 6 .197 3 .516 2.3
0.8 M5 AMT 0604C10 0.8 ISO 6 .157 3 .425 2.3
1.0 M6 AMT 06048C13 1.0 ISO 6 .189 3 .531 2.3
1.0 M10 AMT 0808D21 1.0 ISO 8 .315 4 .846 2.5
1.25 M8 M10 AMT 08064C16 1.25 ISO 8 .252 3 .665 2.5
1.5 M10 AMT 0808C21 1.5 ISO 8 .315 3 .858 2.5
1.5 M14 AMT 12112D29 1.5 ISO 12 .441 4 1.154 3.3
1.75 M12 AMT 10095D25 1.75 ISO 10 .374 4 1.000 2.9
2.0 M16 M17 AMT14126D35 2.0 ISO 14 .496 4 1.378 3.3
* Without internal coolant

ISO With internal coolant bore and cutting Chamfer
Tools for Internal thread - Metric Shanks

Thread length: 2xD

Grade P M K N S H
K20

Pitch M M d No. of
mm coarse fine Ordering Code mm D Df Flutes I If L

0.8 M5 AMT 0604C10 0.8 ISO-C 6 .157 .209 3 .425 .453 2.3
1.0 M6 AMT 08048C13 1.0 ISO-C 8 .189 .252 3 .531 .563 2.5
1.25 M8 M10 AMT 10064C16 1.25 ISO-C 10 .252 .327 3 .665 .705 2.9
1.5 M10 AMT 1208C21 1.5 ISO-C 12 .315 .409 3 .858 .906 3.3
First choice Alternative
