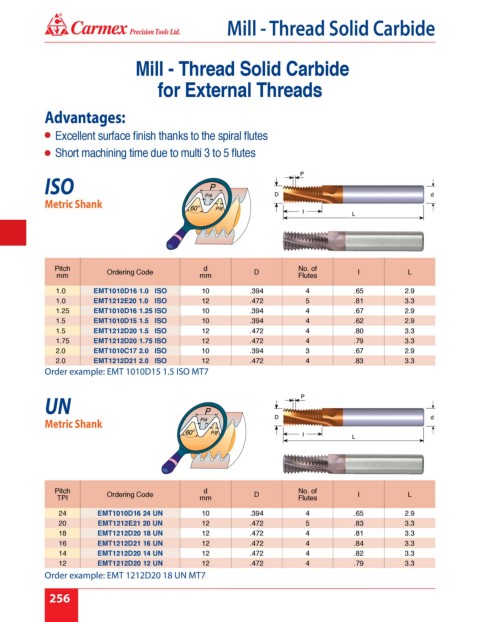

Mill - Thread Solid Carbide

Mill - Thread Solid Carbide

for External Threads

Advantages:

Excellent surface finish thanks to the spiral flutes

Short machining time due to multi 3 to 5 flutes

ISO

Metric Shank

Pitch Ordering Code d D No. of I L
mm mm Flutes
1.0 EMT1010D16 1.0 ISO 10 .394 4 .65 2.9
1.0 EMT1212E20 1.0 ISO 12 .472 5 .81 3.3
1.25 EMT1010D16 1.25 ISO 10 .394 4 .67 2.9
1.5 EMT1010D15 1.5 ISO 10 .394 4 .62 2.9
1.5 EMT1212D20 1.5 ISO 12 .472 4 .80 3.3
1.75 EMT1212D20 1.75 ISO 12 .472 4 .79 3.3
2.0 EMT1010C17 2.0 ISO 10 .394 3 .67 2.9
2.0 EMT1212D21 2.0 ISO 12 .472 4 .83 3.3
Order example: EMT 1010D15 1.5 ISO MT7

UN

Metric Shank

Pitch Ordering Code d D No. of I L
TPI mm Flutes

24 EMT1010D16 24 UN 10 .394 4 .65 2.9
20 EMT1212E21 20 UN 12 .472 5 .83 3.3
18 EMT1212D20 18 UN 12 .472 4 .81 3.3
16 EMT1212D21 16 UN 12 .472 4 .84 3.3
14 EMT1212D20 14 UN 12 .472 4 .82 3.3
12 EMT1212D20 12 UN 12 .472 4 .79 3.3
Order example: EMT 1212D20 18 UN MT7
