P. 259
®
Mill - Thread Solid Carbide

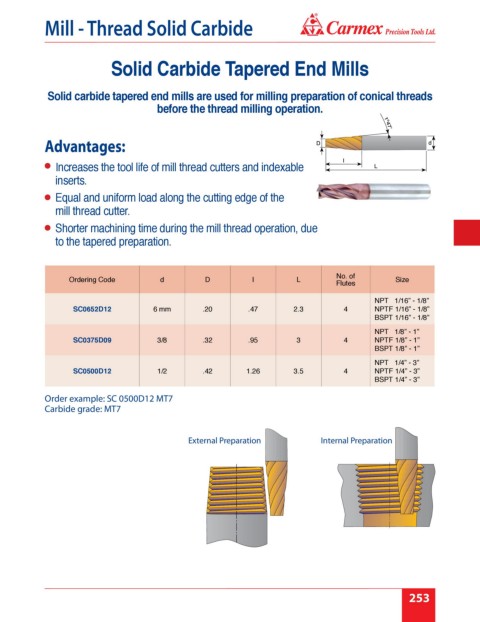

Solid Carbide Tapered End Mills
Solid carbide tapered end mills are used for milling preparation of conical threads
before the thread milling operation.
Advantages:
Increases the tool life of mill thread cutters and indexable
inserts.
Equal and uniform load along the cutting edge of the
mill thread cutter.
Shorter machining time during the mill thread operation, due
to the tapered preparation.
No. of
Ordering Code d D I L Size
Flutes
NPT 1/16” - 1/8”
SC0652D12 6 mm .20 .47 2.3 4 NPTF 1/16” - 1/8”
BSPT 1/16” - 1/8”
NPT 1/8” - 1”
SC0375D09 3/8 .32 .95 3 4 NPTF 1/8” - 1”
BSPT 1/8” - 1”
NPT 1/4” - 3”
SC0500D12 1/2 .42 1.26 3.5 4 NPTF 1/4” - 3”
BSPT 1/4” - 3”
Order example: SC 0500D12 MT7
Carbide grade: MT7
External Preparation Internal Preparation
5
253
