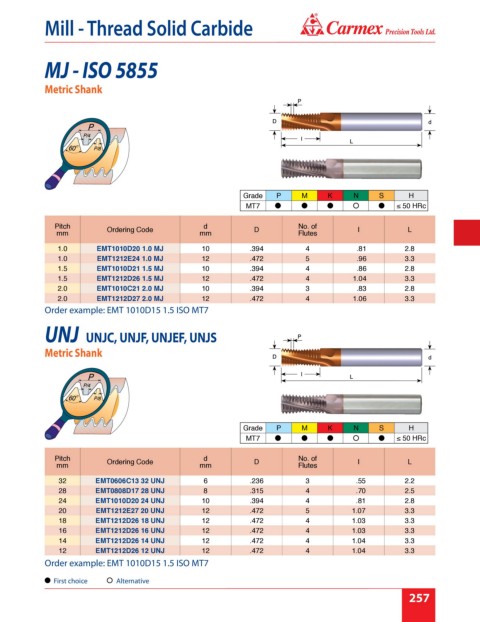

Mill - Thread Solid Carbide

MJ - ISO 5855

Metric Shank

Grade P M K N S H
MT7 ≤ 50 HRc

Pitch Ordering Code d D No. of I L
mm mm Flutes
1.0 EMT1010D20 1.0 MJ 10 .394 4 .81 2.8
1.0 EMT1212E24 1.0 MJ 12 .472 5 .96 3.3
1.5 EMT1010D21 1.5 MJ 10 .394 4 .86 2.8
1.5 EMT1212D26 1.5 MJ 12 .472 4 1.04 3.3
2.0 EMT1010C21 2.0 MJ 10 .394 3 .83 2.8
2.0 EMT1212D27 2.0 MJ 12 .472 4 1.06 3.3
Order example: EMT 1010D15 1.5 ISO MT7

UNJ UNJC, UNJF, UNJEF, UNJS

Metric Shank

Grade P M K N S H
MT7 ≤ 50 HRc

Pitch d No. of
mm Ordering Code mm D Flutes I L
32 EMT0606C13 32 UNJ 6 .236 3 .55 2.2
28 EMT0808D17 28 UNJ 8 .315 4 .70 2.5
24 EMT1010D20 24 UNJ 10 .394 4 .81 2.8
20 EMT1212E27 20 UNJ 12 .472 5 1.07 3.3
18 EMT1212D26 18 UNJ 12 .472 4 1.03 3.3
16 EMT1212D26 16 UNJ 12 .472 4 1.03 3.3
14 EMT1212D26 14 UNJ 12 .472 4 1.04 3.3
12 EMT1212D26 12 UNJ 12 .472 4 1.04 3.3
Order example: EMT 1010D15 1.5 ISO MT7

First choice Alternative
