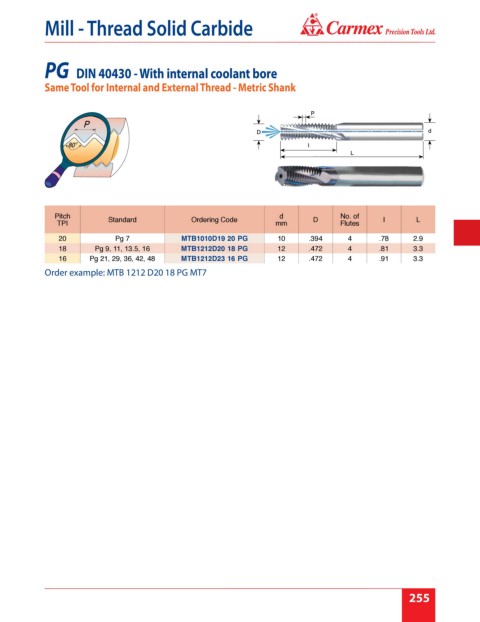

Page 261 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mill - Thread Solid Carbide

PG DIN 40430 - With internal coolant bore

Same Tool for Internal and External Thread - Metric Shank

Pitch Standard Ordering Code d D No. of I L
TPI mm Flutes

20 Pg 7 MTB1010D19 20 PG 10 .394 4 .78 2.9
18 Pg 9, 11, 13.5, 16 MTB1212D20 18 PG 12 .472 4 .81 3.3
16 Pg 21, 29, 36, 42, 48 MTB1212D23 16 PG 12 .472 4 .91 3.3
Order example: MTB 1212 D20 18 PG MT7
