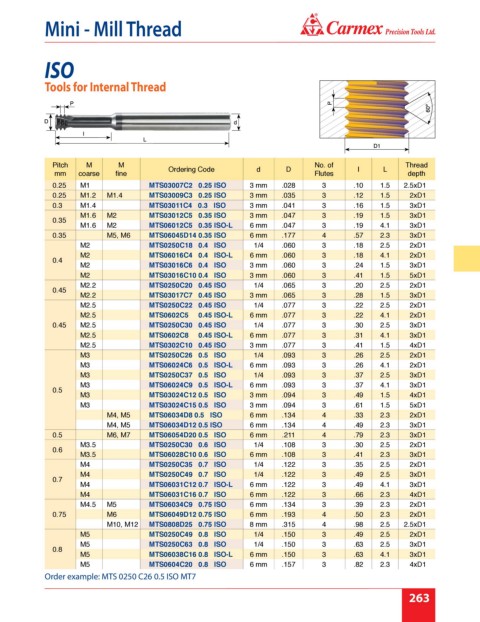

Page 269 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mini - Mill Thread

ISO

Tools for Internal Thread

Pitch M M No. of Thread
Ordering Code d D I L
mm coarse fine Flutes depth
0.25 M1 MTS03007C2 0.25 ISO 3 mm .028 3 .10 1.5 2.5xD1
0.25 M1.2 M1.4 MTS03009C3 0.25 ISO 3 mm .035 3 .12 1.5 2xD1
0.3 M1.4 MTS03011C4 0.3 ISO 3 mm .041 3 .16 1.5 3xD1
M1.6 M2 MTS03012C5 0.35 ISO 3 mm .047 3 .19 1.5 3xD1
0.35
M1.6 M2 MTS06012C5 0.35 ISO-L 6 mm .047 3 .19 4.1 3xD1
0.35 M5, M6 MTS06045D14 0.35 ISO 6 mm .177 4 .57 2.3 3xD1
M2 MTS0250C18 0.4 ISO 1/4 .060 3 .18 2.5 2xD1
M2 MTS06016C4 0.4 ISO-L 6 mm .060 3 .18 4.1 2xD1
0.4
M2 MTS03016C6 0.4 ISO 3 mm .060 3 .24 1.5 3xD1
M2 MTS03016C10 0.4 ISO 3 mm .060 3 .41 1.5 5xD1
M2.2 MTS0250C20 0.45 ISO 1/4 .065 3 .20 2.5 2xD1
0.45
M2.2 MTS03017C7 0.45 ISO 3 mm .065 3 .28 1.5 3xD1
M2.5 MTS0250C22 0.45 ISO 1/4 .077 3 .22 2.5 2xD1
M2.5 MTS0602C5 0.45 ISO-L 6 mm .077 3 .22 4.1 2xD1
0.45 M2.5 MTS0250C30 0.45 ISO 1/4 .077 3 .30 2.5 3xD1
M2.5 MTS0602C8 0.45 ISO-L 6 mm .077 3 .31 4.1 3xD1
M2.5 MTS0302C10 0.45 ISO 3 mm .077 3 .41 1.5 4xD1
M3 MTS0250C26 0.5 ISO 1/4 .093 3 .26 2.5 2xD1
M3 MTS06024C6 0.5 ISO-L 6 mm .093 3 .26 4.1 2xD1
M3 MTS0250C37 0.5 ISO 1/4 .093 3 .37 2.5 3xD1
M3 MTS06024C9 0.5 ISO-L 6 mm .093 3 .37 4.1 3xD1
0.5
M3 MTS03024C12 0.5 ISO 3 mm .094 3 .49 1.5 4xD1
M3 MTS03024C15 0.5 ISO 3 mm .094 3 .61 1.5 5xD1
M4, M5 MTS06034D8 0.5 ISO 6 mm .134 4 .33 2.3 2xD1
M4, M5 MTS06034D12 0.5 ISO 6 mm .134 4 .49 2.3 3xD1
0.5 M6, M7 MTS06054D20 0.5 ISO 6 mm .211 4 .79 2.3 3xD1
M3.5 MTS0250C30 0.6 ISO 1/4 .108 3 .30 2.5 2xD1
0.6
M3.5 MTS06028C10 0.6 ISO 6 mm .108 3 .41 2.3 3xD1
M4 MTS0250C35 0.7 ISO 1/4 .122 3 .35 2.5 2xD1
M4 MTS0250C49 0.7 ISO 1/4 .122 3 .49 2.5 3xD1
0.7
M4 MTS06031C12 0.7 ISO-L 6 mm .122 3 .49 4.1 3xD1
M4 MTS06031C16 0.7 ISO 6 mm .122 3 .66 2.3 4xD1
M4.5 M5 MTS06034C9 0.75 ISO 6 mm .134 3 .39 2.3 2xD1
0.75 M6 MTS06049D12 0.75 ISO 6 mm .193 4 .50 2.3 2xD1
M10, M12 MTS0808D25 0.75 ISO 8 mm .315 4 .98 2.5 2.5xD1
M5 MTS0250C49 0.8 ISO 1/4 .150 3 .49 2.5 2xD1
M5 MTS0250C63 0.8 ISO 1/4 .150 3 .63 2.5 3xD1
0.8
M5 MTS06038C16 0.8 ISO-L 6 mm .150 3 .63 4.1 3xD1
M5 MTS0604C20 0.8 ISO 6 mm .157 3 .82 2.3 4xD1
Order example: MTS 0250 C26 0.5 ISO MT7
