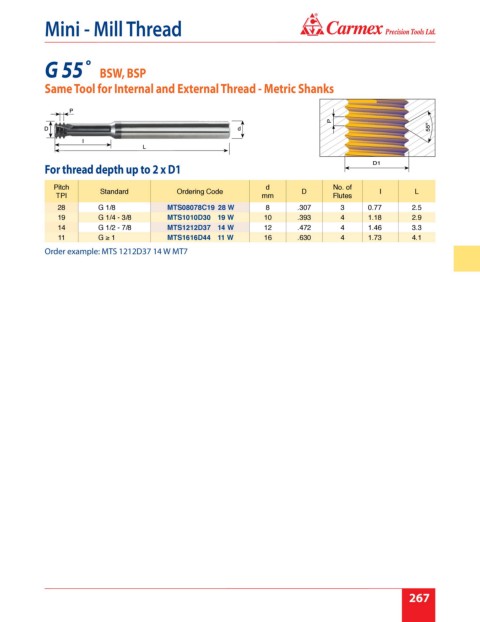

Mini - Mill Thread

G 55˚ BSW, BSP

Same Tool for Internal and External Thread - Metric Shanks

For thread depth up to 2 x D1

Pitch Standard Ordering Code d D No. of I L
TPI mm Flutes
28 G 1/8 MTS08078C19 28 W 8 .307 3 0.77 2.5
19 G 1/4 - 3/8 MTS1010D30 19 W 10 .393 4 1.18 2.9
14 G 1/2 - 7/8 MTS1212D37 14 W 12 .472 4 1.46 3.3
11 G ≥ 1 MTS1616D44 11 W 16 .630 4 1.73 4.1
Order example: MTS 1212D37 14 W MT7
