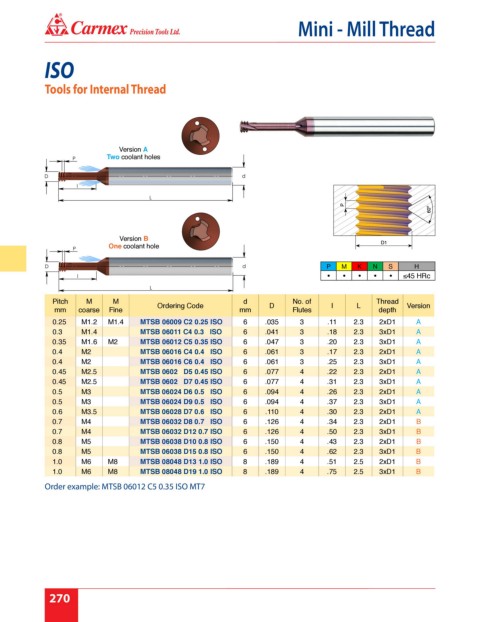

Mini - Mill Thread

ISO

Tools for Internal Thread

Version A
Two coolant holes

Version B
One coolant hole

P M K N S H
• • • • • ≤45 HRc

Pitch M M Ordering Code d D No. of I L Thread Version
mm coarse Fine mm Flutes depth
0.25 M1.2 M1.4 MTSB 06009 C2 0.25 ISO 6 .035 3 .11 2.3 2xD1 A
0.3 M1.4 MTSB 06011 C4 0.3 ISO 6 .041 3 .18 2.3 3xD1 A
0.35 M1.6 M2 MTSB 06012 C5 0.35 ISO 6 .047 3 .20 2.3 3xD1 A
0.4 M2 MTSB 06016 C4 0.4 ISO 6 .061 3 .17 2.3 2xD1 A
0.4 M2 MTSB 06016 C6 0.4 ISO 6 .061 3 .25 2.3 3xD1 A
0.45 M2.5 MTSB 0602 D5 0.45 ISO 6 .077 4 .22 2.3 2xD1 A
0.45 M2.5 MTSB 0602 D7 0.45 ISO 6 .077 4 .31 2.3 3xD1 A
0.5 M3 MTSB 06024 D6 0.5 ISO 6 .094 4 .26 2.3 2xD1 A
0.5 M3 MTSB 06024 D9 0.5 ISO 6 .094 4 .37 2.3 3xD1 A
0.6 M3.5 MTSB 06028 D7 0.6 ISO 6 .110 4 .30 2.3 2xD1 A
0.7 M4 MTSB 06032 D8 0.7 ISO 6 .126 4 .34 2.3 2xD1 B
0.7 M4 MTSB 06032 D12 0.7 ISO 6 .126 4 .50 2.3 3xD1 B
0.8 M5 MTSB 06038 D10 0.8 ISO 6 .150 4 .43 2.3 2xD1 B
0.8 M5 MTSB 06038 D15 0.8 ISO 6 .150 4 .62 2.3 3xD1 B
1.0 M6 M8 MTSB 08048 D13 1.0 ISO 8 .189 4 .51 2.5 2xD1 B
1.0 M6 M8 MTSB 08048 D19 1.0 ISO 8 .189 4 .75 2.5 3xD1 B
Order example: MTSB 06012 C5 0.35 ISO MT7
