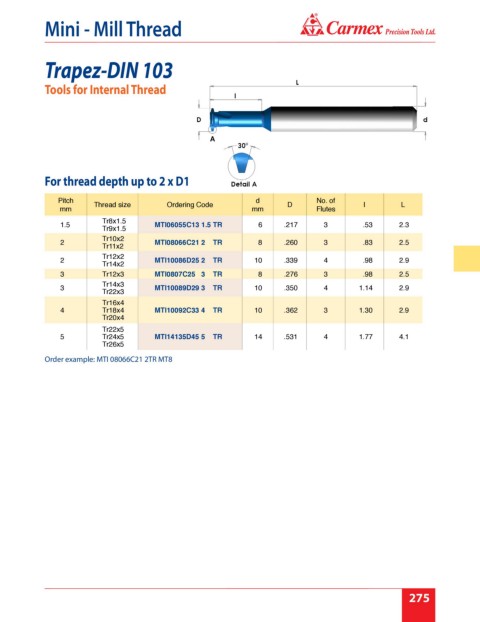

Page 281 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mini - Mill Thread

Trapez-DIN 103

Tools for Internal Thread

For thread depth up to 2 x D1

Pitch Thread size Ordering Code d D No. of l L
mm mm Flutes
Tr8x1.5
1.5 MTI06055C13 1.5 TR 6 .217 3 .53 2.3
Tr9x1.5
Tr10x2
2 MTI08066C21 2 TR 8 .260 3 .83 2.5
Tr11x2
Tr12x2
2 MTI10086D25 2 TR 10 .339 4 .98 2.9
Tr14x2
3 Tr12x3 MTI0807C25 3 TR 8 .276 3 .98 2.5
Tr14x3
3 MTI10089D29 3 TR 10 .350 4 1.14 2.9
Tr22x3
Tr16x4
4 Tr18x4 MTI10092C33 4 TR 10 .362 3 1.30 2.9
Tr20x4
Tr22x5
5 Tr24x5 MTI14135D45 5 TR 14 .531 4 1.77 4.1
Tr26x5
Order example: MTI 08066C21 2TR MT8
