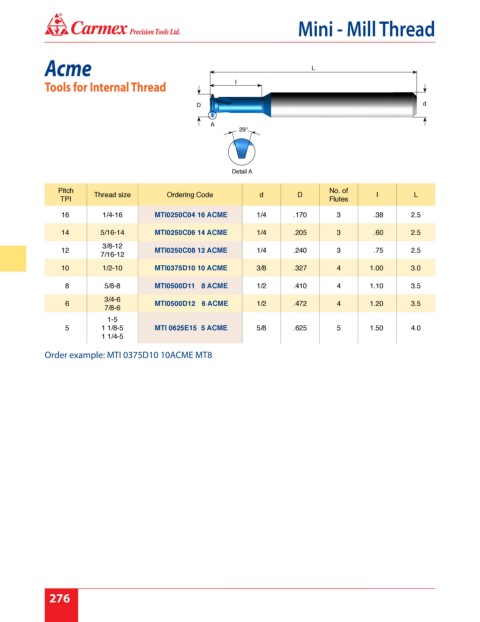

Mini - Mill Thread

Acme L

Tools for Internal Thread I

D d

A
29°

Detail A

Pitch No. of
Thread size Ordering Code d D I L
TPI Flutes
16 1/4-16 MTI0250C04 16 ACME 1/4 .170 3 .38 2.5

14 5/16-14 MTI0250C06 14 ACME 1/4 .205 3 .60 2.5
3/8-12
12 MTI0250C08 12 ACME 1/4 .240 3 .75 2.5
7/16-12
10 1/2-10 MTI0375D10 10 ACME 3/8 .327 4 1.00 3.0

8 5/8-8 MTI0500D11 8 ACME 1/2 .410 4 1.10 3.5
3/4-6
6 MTI0500D12 6 ACME 1/2 .472 4 1.20 3.5
7/8-6
1-5
5 1 1/8-5 MTI 0625E15 5 ACME 5/8 .625 5 1.50 4.0
1 1/4-5

Order example: MTI 0375D10 10ACME MT8
