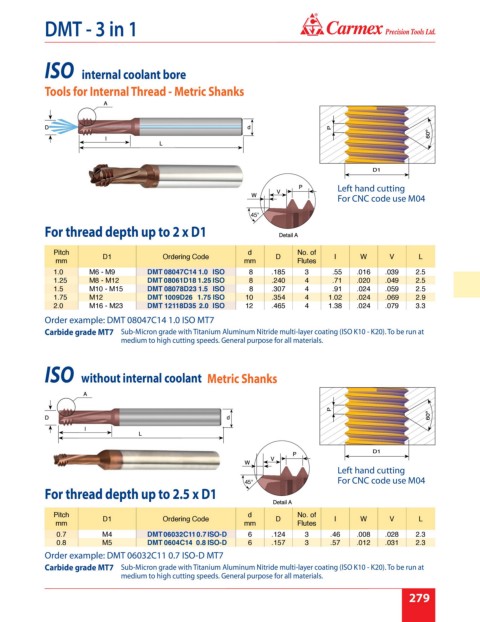

DMT - 3 in 1

ISO internal coolant bore

Tools for Internal Thread - Metric Shanks

Left hand cutting
For CNC code use M04

45°
For thread depth up to 2 x D1

Pitch d No. of
D1 Ordering Code D I W V L
mm mm Flutes
1.0 M6 - M9 DMT 08047C14 1.0 ISO 8 .185 3 .55 .016 .039 2.5
1.25 M8 - M12 DMT 08061D18 1.25 ISO 8 .240 4 .71 .020 .049 2.5
1.5 M10 - M15 DMT 08078D23 1.5 ISO 8 .307 4 .91 .024 .059 2.5
1.75 M12 DMT 1009D26 1.75 ISO 10 .354 4 1.02 .024 .069 2.9
2.0 M16 - M23 DMT 12118D35 2.0 ISO 12 .465 4 1.38 .024 .079 3.3
Order example: DMT 08047C14 1.0 ISO MT7
Carbide grade MT7 Sub-Micron grade with Titanium Aluminum Nitride multi-layer coating (ISO K10 - K20). To be run at
medium to high cutting speeds. General purpose for all materials.

ISO without internal coolant Metric Shanks

Left hand cutting
45° For CNC code use M04
For thread depth up to 2.5 x D1

Pitch d No. of
D1 Ordering Code D I W V L
mm mm Flutes
0.7 M4 DMT 06032C11 0.7 ISO-D 6 .124 3 .46 .008 .028 2.3
0.8 M5 DMT 0604C14 0.8 ISO-D 6 .157 3 .57 .012 .031 2.3
Order example: DMT 06032C11 0.7 ISO-D MT7
Carbide grade MT7 Sub-Micron grade with Titanium Aluminum Nitride multi-layer coating (ISO K10 - K20). To be run at
medium to high cutting speeds. General purpose for all materials.
