P. 290
® ®
HARDCUT

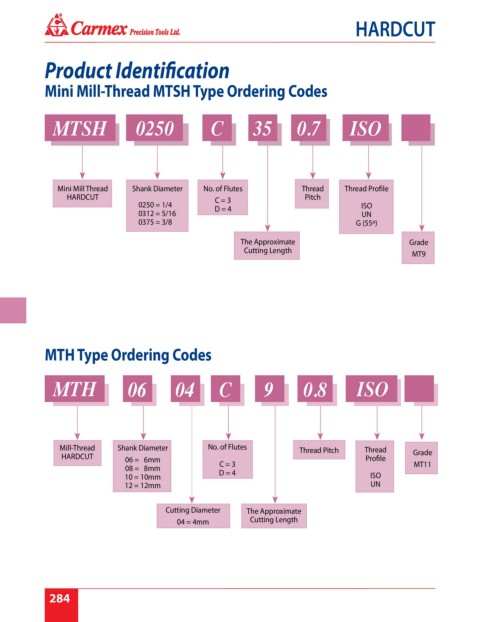

Product Identification
Mini Mill-Thread MTSH Type Ordering Codes
MTSH 0250 C 35 0.7 ISO
Mini Mill Thread Shank Diameter No. of Flutes Thread Thread Profile
HARDCUT C = 3 Pitch
0250 = 1/4 ISO
0312 = 5/16 D = 4 UN
0375 = 3/8 G (55º)
The Approximate Grade
Cutting Length MT9
MTH Type Ordering Codes
MTH 06 04 C 9 0.8 ISO
Mill-Thread Shank Diameter No. of Flutes Thread Pitch Thread
HARDCUT 06 = 6mm Profile Grade
08 = 8mm C = 3 MT11
10 = 10mm D = 4 ISO
12 = 12mm UN
Cutting Diameter The Approximate
04 = 4mm Cutting Length
