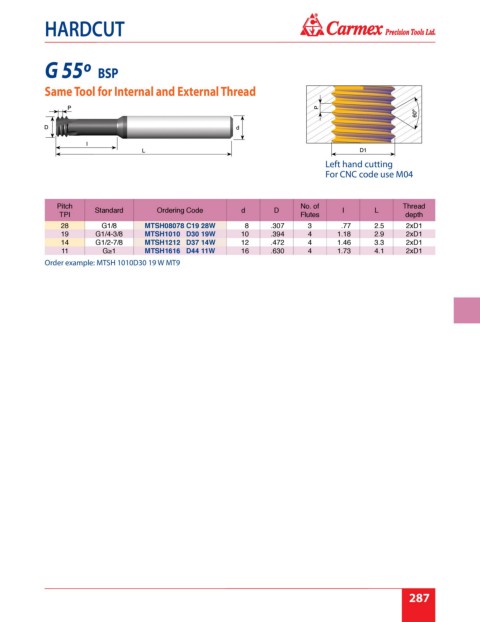

Page 293 - Carmex - Inch Catalog 2018-19 Rev. B

® ®
HARDCUT

G 55º BSP

Same Tool for Internal and External Thread

Left hand cutting
For CNC code use M04

Pitch Standard Ordering Code d D No. of I L Thread
TPI Flutes depth
28 G1/8 MTSH08078 C19 28W 8 .307 3 .77 2.5 2xD1
19 G1/4-3/8 MTSH1010 D30 19W 10 .394 4 1.18 2.9 2xD1
14 G1/2-7/8 MTSH1212 D37 14W 12 .472 4 1.46 3.3 2xD1
11 G≥1 MTSH1616 D44 11W 16 .630 4 1.73 4.1 2xD1
Order example: MTSH 1010D30 19 W MT9
