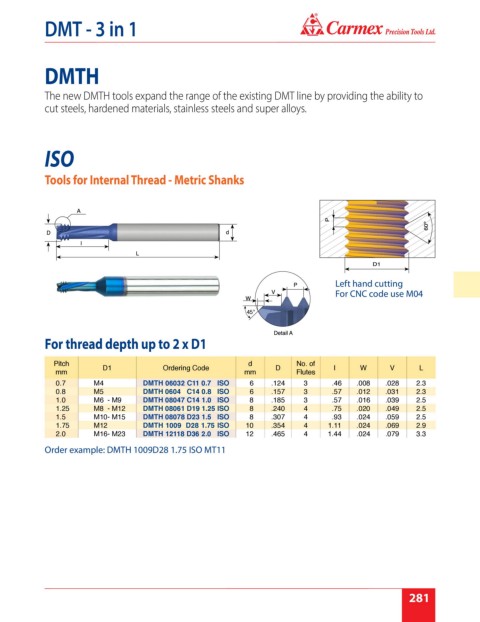

DMT - 3 in 1

DMTH

The new DMTH tools expand the range of the existing DMT line by providing the ability to
cut steels, hardened materials, stainless steels and super alloys.

ISO

Tools for Internal Thread - Metric Shanks

Left hand cutting
For CNC code use M04

45°

For thread depth up to 2 x D1

Pitch d No. of
D1 Ordering Code D I W V L
mm mm Flutes
0.7 M4 DMTH 06032 C11 0.7 ISO 6 .124 3 .46 .008 .028 2.3
0.8 M5 DMTH 0604 C14 0.8 ISO 6 .157 3 .57 .012 .031 2.3
1.0 M6 - M9 DMTH 08047 C14 1.0 ISO 8 .185 3 .57 .016 .039 2.5
1.25 M8 - M12 DMTH 08061 D19 1.25 ISO 8 .240 4 .75 .020 .049 2.5
1.5 M10- M15 DMTH 08078 D23 1.5 ISO 8 .307 4 .93 .024 .059 2.5
1.75 M12 DMTH 1009 D28 1.75 ISO 10 .354 4 1.11 .024 .069 2.9
2.0 M16- M23 DMTH 12118 D36 2.0 ISO 12 .465 4 1.44 .024 .079 3.3
Order example: DMTH 1009D28 1.75 ISO MT11

5
