P. 284
®

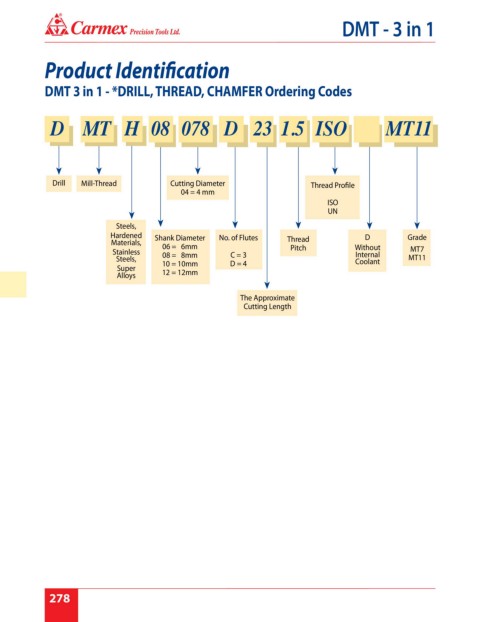

DMT - 3 in 1
Product Identification
DMT 3 in 1 - *DRILL, THREAD, CHAMFER Ordering Codes
D MT H 08 078 D 23 1.5 ISO MT11
Drill Mill-Thread Cutting Diameter Thread Profile
04 = 4 mm
ISO
UN
Steels,
Hardened Shank Diameter No. of Flutes D Grade
Materials, 06 = 6mm Thread Without
Stainless 08 = 8mm C = 3 Pitch Internal MT7
Steels, 10 = 10mm D = 4 Coolant MT11
Super
Alloys 12 = 12mm
The Approximate
Cutting Length
8 278
