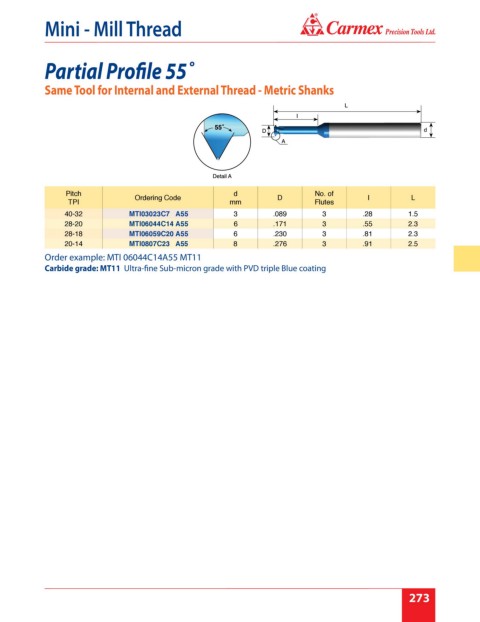

Mini - Mill Thread

Partial Profile 55˚

Same Tool for Internal and External Thread - Metric Shanks

Pitch Ordering Code d D No. of I L
TPI mm Flutes
40-32 MTI03023C7 A55 3 .089 3 .28 1.5
28-20 MTI06044C14 A55 6 .171 3 .55 2.3
28-18 MTI06059C20 A55 6 .230 3 .81 2.3
20-14 MTI0807C23 A55 8 .276 3 .91 2.5
Order example: MTI 06044C14A55 MT11
Carbide grade: MT11 Ultra-fine Sub-micron grade with PVD triple Blue coating
