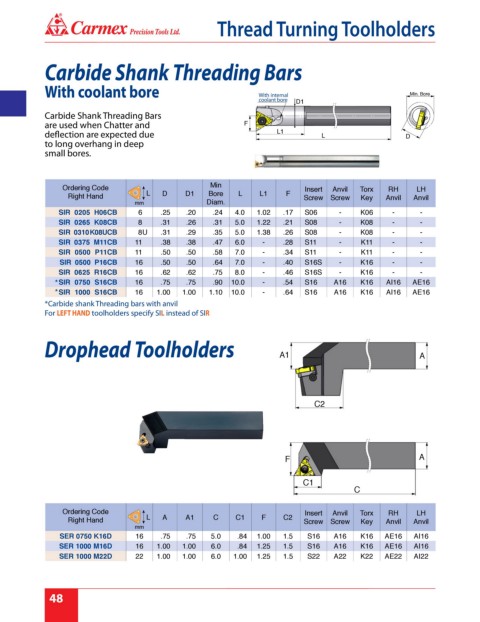

Thread Turning Toolholders

Carbide Shank Threading Bars

With coolant bore Min. Bore
With internal
coolant bore D1
Carbide Shank Threading Bars
are used when Chatter and F
deflection are expected due L1 L D
to long overhang in deep
small bores.

Ordering Code Min Insert Anvil Torx RH LH
L D D1 Bore L L1 F
Right Hand Screw Screw Key Anvil Anvil
mm Diam.
SIR 0205 H06CB 6 .25 .20 .24 4.0 1.02 .17 S06 - K06 - -
SIR 0265 K08CB 8 .31 .26 .31 5.0 1.22 .21 S08 - K08 - -
SIR 0310 K08UCB 8U .31 .29 .35 5.0 1.38 .26 S08 - K08 - -
SIR 0375 M11CB 11 .38 .38 .47 6.0 - .28 S11 - K11 - -
SIR 0500 P11CB 11 .50 .50 .58 7.0 - .34 S11 - K11 - -
SIR 0500 P16CB 16 .50 .50 .64 7.0 - .40 S16S - K16 - -
SIR 0625 R16CB 16 .62 .62 .75 8.0 - .46 S16S - K16 - -
* SIR 0750 S16CB 16 .75 .75 .90 10.0 - .54 S16 A16 K16 AI16 AE16
* SIR 1000 S16CB 16 1.00 1.00 1.10 10.0 - .64 S16 A16 K16 AI16 AE16

*Carbide shank Threading bars with anvil
For LEFT HAND toolholders specify SIL instead of SIR

Drophead Toolholders A1 A

C2

F A

C1
C

Ordering Code Insert Anvil Torx RH LH
Right Hand L A A1 C C1 F C2 Screw Screw Key Anvil Anvil
mm
SER 0750 K16D 16 .75 .75 5.0 .84 1.00 1.5 S16 A16 K16 AE16 AI16
SER 1000 M16D 16 1.00 1.00 6.0 .84 1.25 1.5 S16 A16 K16 AE16 AI16
SER 1000 M22D 22 1.00 1.00 6.0 1.00 1.25 1.5 S22 A22 K22 AE22 AI22
