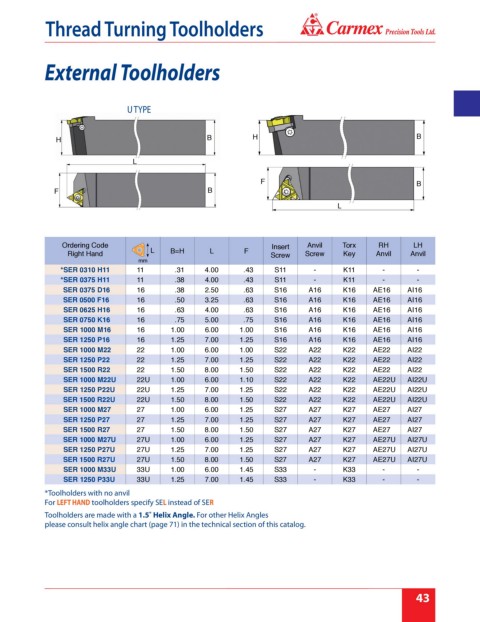

Page 49 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Toolholders

External Toolholders

U TYPE

H B H B

L

F B
F B
L

Ordering Code Insert Anvil Torx RH LH
Right Hand L B=H L F Screw Screw Key Anvil Anvil
mm
*SER 0310 H11 11 .31 4.00 .43 S11 - K11 - -
*SER 0375 H11 11 .38 4.00 .43 S11 - K11 - -
SER 0375 D16 16 .38 2.50 .63 S16 A16 K16 AE16 AI16
SER 0500 F16 16 .50 3.25 .63 S16 A16 K16 AE16 AI16
SER 0625 H16 16 .63 4.00 .63 S16 A16 K16 AE16 AI16
SER 0750 K16 16 .75 5.00 .75 S16 A16 K16 AE16 AI16
SER 1000 M16 16 1.00 6.00 1.00 S16 A16 K16 AE16 AI16
SER 1250 P16 16 1.25 7.00 1.25 S16 A16 K16 AE16 AI16
SER 1000 M22 22 1.00 6.00 1.00 S22 A22 K22 AE22 AI22
SER 1250 P22 22 1.25 7.00 1.25 S22 A22 K22 AE22 AI22
SER 1500 R22 22 1.50 8.00 1.50 S22 A22 K22 AE22 AI22
SER 1000 M22U 22U 1.00 6.00 1.10 S22 A22 K22 AE22U AI22U
SER 1250 P22U 22U 1.25 7.00 1.25 S22 A22 K22 AE22U AI22U
SER 1500 R22U 22U 1.50 8.00 1.50 S22 A22 K22 AE22U AI22U
SER 1000 M27 27 1.00 6.00 1.25 S27 A27 K27 AE27 AI27
SER 1250 P27 27 1.25 7.00 1.25 S27 A27 K27 AE27 AI27
SER 1500 R27 27 1.50 8.00 1.50 S27 A27 K27 AE27 AI27
SER 1000 M27U 27U 1.00 6.00 1.25 S27 A27 K27 AE27U AI27U
SER 1250 P27U 27U 1.25 7.00 1.25 S27 A27 K27 AE27U AI27U
SER 1500 R27U 27U 1.50 8.00 1.50 S27 A27 K27 AE27U AI27U
SER 1000 M33U 33U 1.00 6.00 1.45 S33 - K33 - -
SER 1250 P33U 33U 1.25 7.00 1.45 S33 - K33 - -
*Toolholders with no anvil
For LEFT HAND toolholders specify SEL instead of SER
Toolholders are made with a 1.5˚ Helix Angle. For other Helix Angles
please consult helix angle chart (page 71) in the technical section of this catalog.

43
