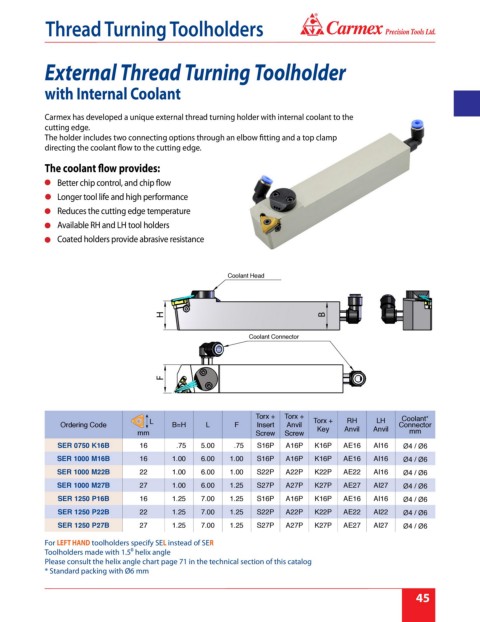

Page 51 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Toolholders

External Thread Turning Toolholder

with Internal Coolant

Carmex has developed a unique external thread turning holder with internal coolant to the
cutting edge.
The holder includes two connecting options through an elbow fitting and a top clamp
directing the coolant flow to the cutting edge.

The coolant flow provides:
Better chip control, and chip flow
Longer tool life and high performance

Reduces the cutting edge temperature
Available RH and LH tool holders
Coated holders provide abrasive resistance

Coolant Head

H B

Coolant Connector

F

Torx + Torx + Coolant*
L Torx + RH LH
Ordering Code B=H L F Insert Anvil Connector
mm Screw Screw Key Anvil Anvil mm
SER 0750 K16B 16 .75 5.00 .75 S16P A16P K16P AE16 AI16 ø4 / ø6
SER 1000 M16B 16 1.00 6.00 1.00 S16P A16P K16P AE16 AI16 ø4 / ø6
SER 1000 M22B 22 1.00 6.00 1.00 S22P A22P K22P AE22 AI16 ø4 / ø6
SER 1000 M27B 27 1.00 6.00 1.25 S27P A27P K27P AE27 AI27 ø4 / ø6
SER 1250 P16B 16 1.25 7.00 1.25 S16P A16P K16P AE16 AI16 ø4 / ø6
SER 1250 P22B 22 1.25 7.00 1.25 S22P A22P K22P AE22 AI22 ø4 / ø6
SER 1250 P27B 27 1.25 7.00 1.25 S27P A27P K27P AE27 AI27 ø4 / ø6

For LEFT HAND toolholders specify SEL instead of SER
Toolholders made with 1.5⁰ helix angle
Please consult the helix angle chart page 71 in the technical section of this catalog
* Standard packing with Ø6 mm

45
