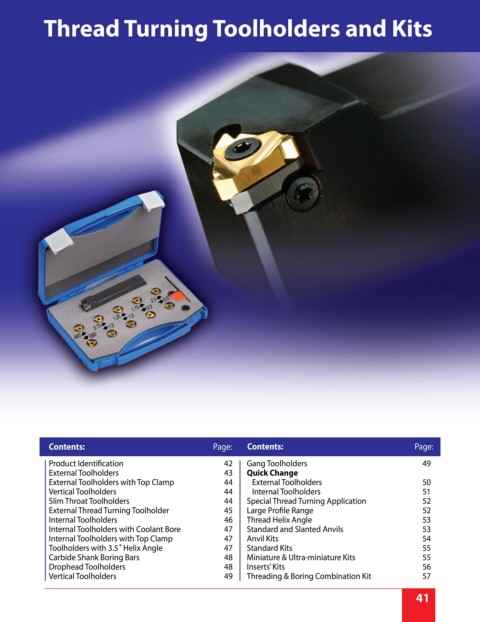

Thread Turning Toolholders and Kits
Contents: Page: Contents: Page:
Product Identification 42 Gang Toolholders 49
External Toolholders 43 Quick Change
External Toolholders with Top Clamp 44 External Toolholders 50
Vertical Toolholders 44 Internal Toolholders 51
Slim Throat Toolholders 44 Special Thread Turning Application 52
External Thread Turning Toolholder 45 Large Profile Range 52
Internal Toolholders 46 Thread Helix Angle 53
Internal Toolholders with Coolant Bore 47 Standard and Slanted Anvils 53
Internal Toolholders with Top Clamp 47 Anvil Kits 54
Toolholders with 3.5˚ Helix Angle 47 Standard Kits 55
Carbide Shank Boring Bars 48 Miniature & Ultra-miniature Kits 55
Drophead Toolholders 48 Inserts’ Kits 56
Vertical Toolholders 49 Threading & Boring Combination Kit 57
41
