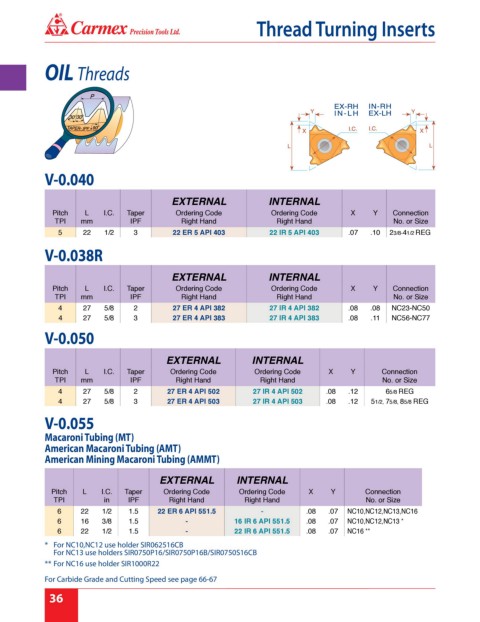

Page 42 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Inserts

OIL Threads

V-0.040

EXTERNAL INTERNAL
Pitch L I.C. Taper Ordering Code Ordering Code X Y Connection
TPI mm IPF Right Hand Right Hand No. or Size
5 22 1/2 3 22 ER 5 API 403 22 IR 5 API 403 .07 .10 23/8-41/2 REG
V-0.038R

EXTERNAL INTERNAL
Pitch L I.C. Taper Ordering Code Ordering Code X Y Connection
TPI mm IPF Right Hand Right Hand No. or Size
4 27 5/8 2 27 ER 4 API 382 27 IR 4 API 382 .08 .08 NC23-NC50
4 27 5/8 3 27 ER 4 API 383 27 IR 4 API 383 .08 .11 NC56-NC77
V-0.050

EXTERNAL INTERNAL
Pitch L I.C. Taper Ordering Code Ordering Code X Y Connection
TPI mm IPF Right Hand Right Hand No. or Size
4 27 5/8 2 27 ER 4 API 502 27 IR 4 API 502 .08 .12 65/8 REG
4 27 5/8 3 27 ER 4 API 503 27 IR 4 API 503 .08 .12 51/2, 75/8, 85/8 REG
V-0.055

Macaroni Tubing (MT)
American Macaroni Tubing (AMT)
American Mining Macaroni Tubing (AMMT)

EXTERNAL INTERNAL
Pitch L I.C. Taper Ordering Code Ordering Code X Y Connection
TPI in IPF Right Hand Right Hand No. or Size
6 22 1/2 1.5 22 ER 6 API 551.5 - .08 .07 NC10,NC12,NC13,NC16
6 16 3/8 1.5 - 16 IR 6 API 551.5 .08 .07 NC10,NC12,NC13 *
6 22 1/2 1.5 - 22 IR 6 API 551.5 .08 .07 NC16 **
* For NC10,NC12 use holder SIR062516CB
For NC13 use holders SIR0750P16/SIR0750P16B/SIR0750S16CB
** For NC16 use holder SIR1000R22

For Carbide Grade and Cutting Speed see page 66-67
