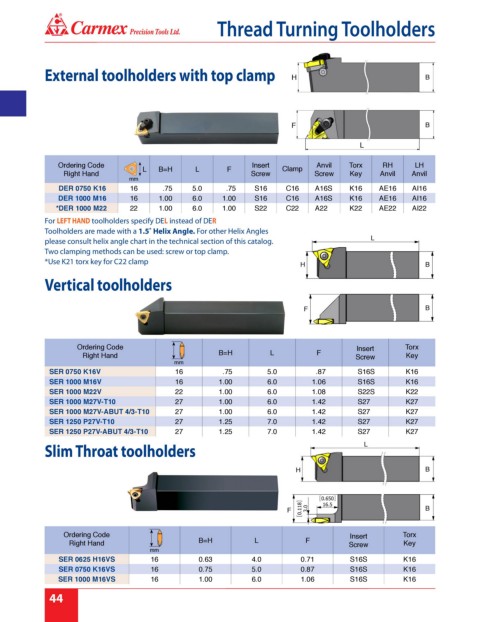

Page 50 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Toolholders

External toolholders with top clamp H B

F B

L

Ordering Code L B=H L F Insert Clamp Anvil Torx RH LH
Right Hand Screw Screw Key Anvil Anvil
mm
DER 0750 K16 16 .75 5.0 .75 S16 C16 A16S K16 AE16 AI16
DER 1000 M16 16 1.00 6.0 1.00 S16 C16 A16S K16 AE16 AI16
*DER 1000 M22 22 1.00 6.0 1.00 S22 C22 A22 K22 AE22 AI22
For LEFT HAND toolholders specify DEL instead of DER
Toolholders are made with a 1.5˚ Helix Angle. For other Helix Angles
please consult helix angle chart in the technical section of this catalog. L
Two clamping methods can be used: screw or top clamp.
*Use K21 torx key for C22 clamp H B

Vertical toolholders

F B

Ordering Code Insert Torx
Right Hand B=H L F Screw Key
mm
SER 0750 K16V 16 .75 5.0 .87 S16S K16
SER 1000 M16V 16 1.00 6.0 1.06 S16S K16
SER 1000 M22V 22 1.00 6.0 1.08 S22S K22
SER 1000 M27V-T10 27 1.00 6.0 1.42 S27 K27
SER 1000 M27V-ABUT 4/3-T10 27 1.00 6.0 1.42 S27 K27
SER 1250 P27V-T10 27 1.25 7.0 1.42 S27 K27
SER 1250 P27V-ABUT 4/3-T10 27 1.25 7.0 1.42 S27 K27
Slim Throat toolholders L

H B

F B

Ordering Code Insert Torx
Right Hand B=H L F Screw Key
mm
SER 0625 H16VS 16 0.63 4.0 0.71 S16S K16
SER 0750 K16VS 16 0.75 5.0 0.87 S16S K16
SER 1000 M16VS 16 1.00 6.0 1.06 S16S K16
