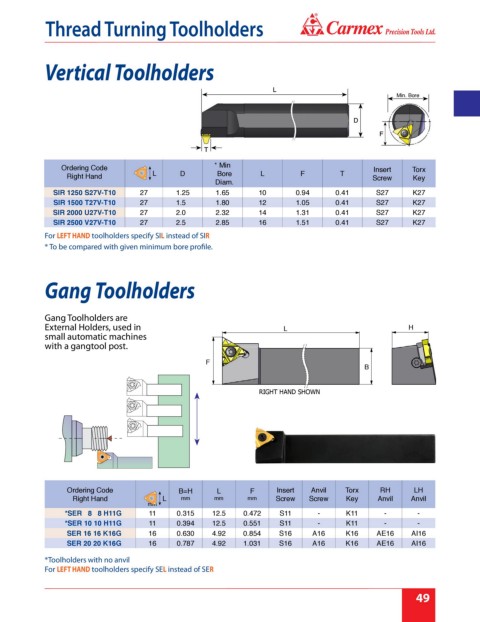

Page 55 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Toolholders

Vertical Toolholders

Min. Bore

* Min
Ordering Code Insert Torx
L D Bore L F T
Right Hand Screw Key
Diam.
SIR 1250 S27V-T10 27 1.25 1.65 10 0.94 0.41 S27 K27
SIR 1500 T27V-T10 27 1.5 1.80 12 1.05 0.41 S27 K27
SIR 2000 U27V-T10 27 2.0 2.32 14 1.31 0.41 S27 K27
SIR 2500 V27V-T10 27 2.5 2.85 16 1.51 0.41 S27 K27

For LEFT HAND toolholders specify SIL instead of SIR
* To be compared with given minimum bore profile.

Gang Toolholders

Gang Toolholders are
External Holders, used in L H
small automatic machines
with a gangtool post.

F
B

RIGHT HAND SHOWNHAND SHOWN
RIGHT

Ordering Code B=H L F Insert Anvil Torx RH LH
Right Hand L mm mm mm Screw Screw Key Anvil Anvil
mm
*SER 8 8 H11G 11 0.315 12.5 0.472 S11 - K11 - -
*SER 10 10 H11G 11 0.394 12.5 0.551 S11 - K11 - -
SER 16 16 K16G 16 0.630 4.92 0.854 S16 A16 K16 AE16 AI16
SER 20 20 K16G 16 0.787 4.92 1.031 S16 A16 K16 AE16 AI16

*Toolholders with no anvil
For LEFT HAND toolholders specify SEL instead of SER

49
