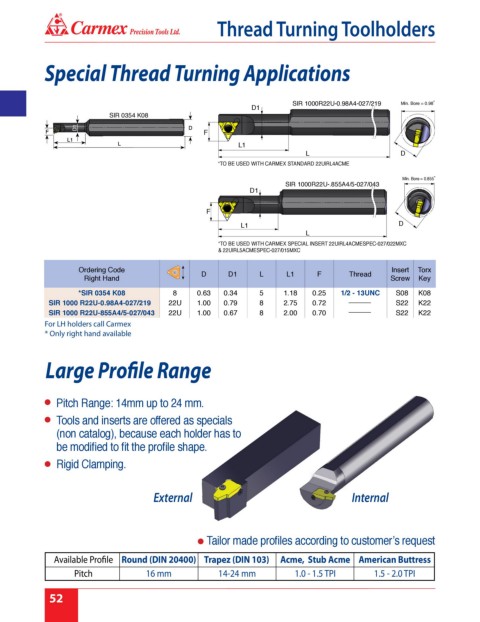

Page 58 - Carmex - Inch Catalog 2018-19 Rev. B

®
Thread Turning Toolholders

Special Thread Turning Applications

SIR 1000R22U-0.98A4-027/219 Min. Bore = 0.98 ”
D1
SIR 0354 K08

F
L1
L D
*TO BE USED WITH CARMEX STANDARD 22UIRL4ACME
Min. Bore = 0.855 ”
SIR 1000R22U-.855A4/5-027/043
D1

F

L1 D
L
*TO BE USED WITH CARMEX SPECIAL INSERT 22UIRL4ACMESPEC-027/022MXC
& 22UIRL5ACMESPEC-027/015MXC

Ordering Code Insert Torx
D D1 L L1 F Thread
Right Hand Screw Key
*SIR 0354 K08 8 0.63 0.34 5 1.18 0.25 1/2 - 13UNC S08 K08
SIR 1000 R22U-0.98A4-027/219 22U 1.00 0.79 8 2.75 0.72 S22 K22
SIR 1000 R22U-855A4/5-027/043 22U 1.00 0.67 8 2.00 0.70 S22 K22
For LH holders call Carmex
* Only right hand available

Large Profile Range

Pitch Range: 14mm up to 24 mm.
Tools and inserts are offered as specials
(non catalog), because each holder has to

be modified to fit the profile shape.
Rigid Clamping.

External Internal

Tailor made profiles according to customer’s request
Available Profile Round (DIN 20400) Trapez (DIN 103) Acme, Stub Acme American Buttress
Pitch 16 mm 14-24 mm 1.0 - 1.5 TPI 1.5 - 2.0 TPI

52
