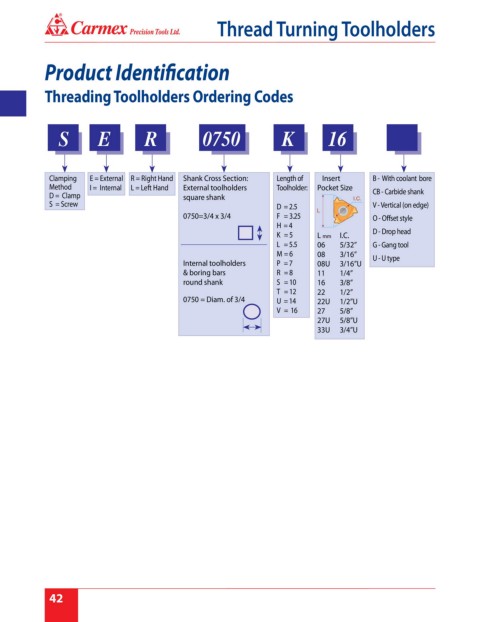

Thread Turning Toolholders

Product Identification

Threading Toolholders Ordering Codes

S E R 0750 K 16

Clamping E = External R = Right Hand Shank Cross Section: Length of Insert B - With coolant bore
Method I = Internal L = Left Hand External toolholders Toolholder: Pocket Size
D = Clamp square shank CB - Carbide shank
S = Screw D = 2.5 V - Vertical (on edge)
0750=3/4 x 3/4 F = 3.25 O - Offset style
H = 4
K = 5 L mm I.C. D - Drop head

L = 5.5 06 5/32” G - Gang tool
M = 6 08 3/16”
Internal toolholders P = 7 08U 3/16”U U - U type
& boring bars R = 8 11 1/4”
round shank S = 10 16 3/8”
T = 12 22 1/2”
0750 = Diam. of 3/4 U = 14 22U 1/2”U
V = 16 27 5/8”
27U 5/8”U
33U 3/4”U

42
