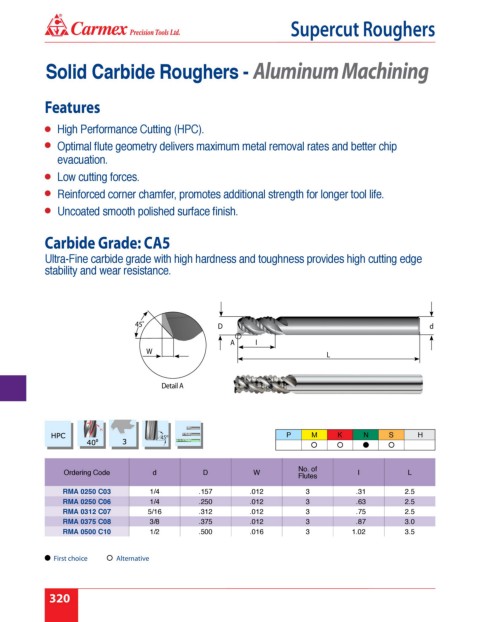

Page 326 - Carmex - Inch Catalog 2018-19 Rev. B

®
Supercut Roughers

Solid Carbide Roughers - Aluminum Machining

Features

High Performance Cutting (HPC).

Optimal flute geometry delivers maximum metal removal rates and better chip
evacuation.

Low cutting forces.
Reinforced corner chamfer, promotes additional strength for longer tool life.

Uncoated smooth polished surface finish.

Carbide Grade: CA5

Ultra-Fine carbide grade with high hardness and toughness provides high cutting edge
stability and wear resistance.

45˚ D d

A I
W L

Detail A

P M K N S H

No. of
Ordering Code d D W I L
Flutes
RMA 0250 C03 1/4 .157 .012 3 .31 2.5
RMA 0250 C06 1/4 .250 .012 3 .63 2.5
RMA 0312 C07 5/16 .312 .012 3 .75 2.5
RMA 0375 C08 3/8 .375 .012 3 .87 3.0
RMA 0500 C10 1/2 .500 .016 3 1.02 3.5

First choice Alternative
