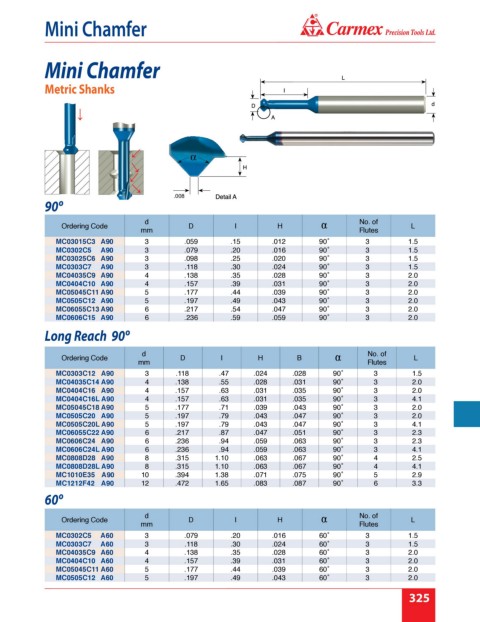

Page 331 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mini Chamfer

Mini Chamfer

Metric Shanks

90º .008

d No. of
Ordering Code D I H L
mm Flutes
MC03015C3 A90 3 .059 .15 .012 90˚ 3 1.5
MC0302C5 A90 3 .079 .20 .016 90˚ 3 1.5
MC03025C6 A90 3 .098 .25 .020 90˚ 3 1.5
MC0303C7 A90 3 .118 .30 .024 90˚ 3 1.5
MC04035C9 A90 4 .138 .35 .028 90˚ 3 2.0
MC0404C10 A90 4 .157 .39 .031 90˚ 3 2.0
MC05045C11 A90 5 .177 .44 .039 90˚ 3 2.0
MC0505C12 A90 5 .197 .49 .043 90˚ 3 2.0
MC06055C13 A90 6 .217 .54 .047 90˚ 3 2.0
MC0606C15 A90 6 .236 .59 .059 90˚ 3 2.0
Long Reach 90º

d No. of
Ordering Code D I H B L
mm Flutes
MC0303C12 A90 3 .118 .47 .024 .028 90˚ 3 1.5
MC04035C14 A90 4 .138 .55 .028 .031 90˚ 3 2.0
MC0404C16 A90 4 .157 .63 .031 .035 90˚ 3 2.0
MC0404C16L A90 4 .157 .63 .031 .035 90˚ 3 4.1
MC05045C18 A90 5 .177 .71 .039 .043 90˚ 3 2.0
MC0505C20 A90 5 .197 .79 .043 .047 90˚ 3 2.0
MC0505C20L A90 5 .197 .79 .043 .047 90˚ 3 4.1
MC06055C22 A90 6 .217 .87 .047 .051 90˚ 3 2.3
MC0606C24 A90 6 .236 .94 .059 .063 90˚ 3 2.3
MC0606C24L A90 6 .236 .94 .059 .063 90˚ 3 4.1
MC0808D28 A90 8 .315 1.10 .063 .067 90˚ 4 2.5
MC0808D28L A90 8 .315 1.10 .063 .067 90˚ 4 4.1
MC1010E35 A90 10 .394 1.38 .071 .075 90˚ 5 2.9
MC1212F42 A90 12 .472 1.65 .083 .087 90˚ 6 3.3
60º

d No. of
Ordering Code D I H L
mm Flutes
MC0302C5 A60 3 .079 .20 .016 60˚ 3 1.5
MC0303C7 A60 3 .118 .30 .024 60˚ 3 1.5
MC04035C9 A60 4 .138 .35 .028 60˚ 3 2.0
MC0404C10 A60 4 .157 .39 .031 60˚ 3 2.0
MC05045C11 A60 5 .177 .44 .039 60˚ 3 2.0
MC0505C12 A60 5 .197 .49 .043 60˚ 3 2.0
