Mini Chamfer

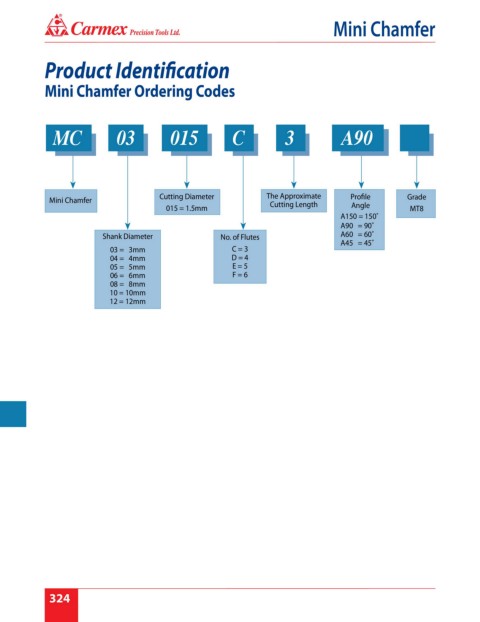

Product Identification
Mini Chamfer Ordering Codes
MC 03 015 C 3 A90
Mini Chamfer Cutting Diameter The Approximate Profile Grade
Cutting Length
015 = 1.5mm Angle MT8
A150 = 150˚
A90 = 90˚
Shank Diameter No. of Flutes A60 = 60˚
A45 = 45˚
03 = 3mm C = 3
04 = 4mm D = 4
05 = 5mm E = 5
06 = 6mm F = 6
08 = 8mm
10 = 10mm
12 = 12mm
