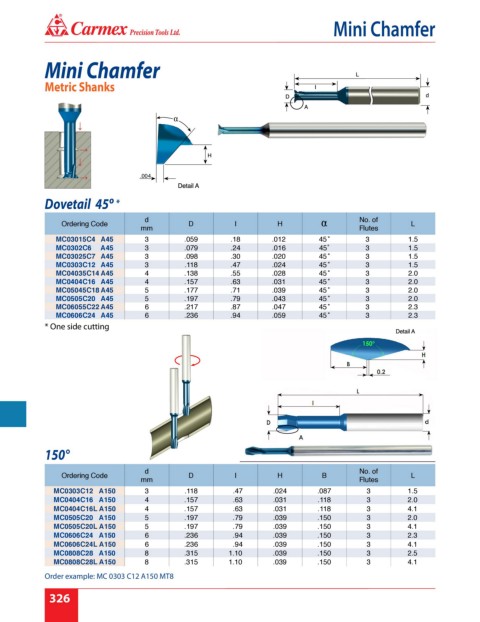

Page 332 - Carmex - Inch Catalog 2018-19 Rev. B

®
Mini Chamfer

Mini Chamfer

Metric Shanks

.004

Dovetail 45º *

d No. of
Ordering Code D I H L
mm Flutes
MC03015C4 A45 3 .059 .18 .012 45˚ 3 1.5
MC0302C6 A45 3 .079 .24 .016 45˚ 3 1.5
MC03025C7 A45 3 .098 .30 .020 45˚ 3 1.5
MC0303C12 A45 3 .118 .47 .024 45˚ 3 1.5
MC04035C14 A45 4 .138 .55 .028 45˚ 3 2.0
MC0404C16 A45 4 .157 .63 .031 45˚ 3 2.0
MC05045C18 A45 5 .177 .71 .039 45˚ 3 2.0
MC0505C20 A45 5 .197 .79 .043 45˚ 3 2.0
MC06055C22 A45 6 .217 .87 .047 45˚ 3 2.3
MC0606C24 A45 6 .236 .94 .059 45˚ 3 2.3
* One side cutting

150°

d No. of
Ordering Code D I H B L
mm Flutes
MC0303C12 A150 3 .118 .47 .024 .087 3 1.5
MC0404C16 A150 4 .157 .63 .031 .118 3 2.0
MC0404C16L A150 4 .157 .63 .031 .118 3 4.1
MC0505C20 A150 5 .197 .79 .039 .150 3 2.0
MC0505C20L A150 5 .197 .79 .039 .150 3 4.1
MC0606C24 A150 6 .236 .94 .039 .150 3 2.3
MC0606C24L A150 6 .236 .94 .039 .150 3 4.1
MC0808C28 A150 8 .315 1.10 .039 .150 3 2.5
MC0808C28L A150 8 .315 1.10 .039 .150 3 4.1
Order example: MC 0303 C12 A150 MT8
