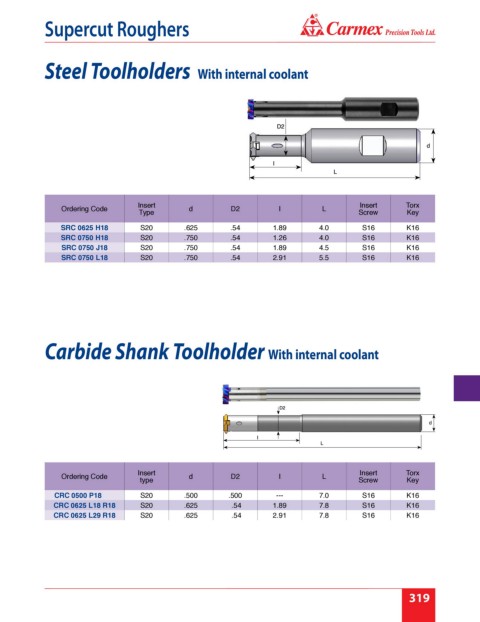

Page 325 - Carmex - Inch Catalog 2018-19 Rev. B

®
Supercut Roughers

Steel Toolholders With internal coolant

Insert Insert Torx
Ordering Code d D2 I L
Type Screw Key
SRC 0625 H18 S20 .625 .54 1.89 4.0 S16 K16
SRC 0750 H18 S20 .750 .54 1.26 4.0 S16 K16
SRC 0750 J18 S20 .750 .54 1.89 4.5 S16 K16
SRC 0750 L18 S20 .750 .54 2.91 5.5 S16 K16

Carbide Shank Toolholder With internal coolant

Insert Insert Torx
Ordering Code d D2 I L
type Screw Key
CRC 0500 P18 S20 .500 .500 --- 7.0 S16 K16
CRC 0625 L18 R18 S20 .625 .54 1.89 7.8 S16 K16
CRC 0625 L29 R18 S20 .625 .54 2.91 7.8 S16 K16
